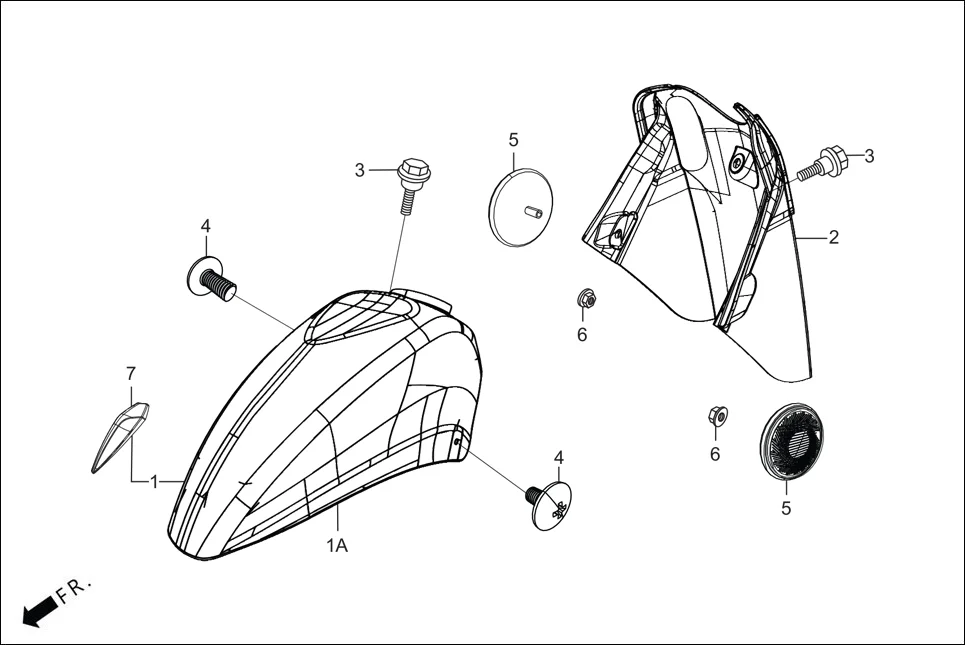

F-5_LX - FRONT FENDER
Hero PLEASURE 110 BS6 OBDA(July,2024) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61100-AAL-E00T | FENDER A FRONT (MAT BLACK NH-105) | 1 | |
| 1 | 61100-AAL-E00U | FENDER A FRONT (JUBILANT YELLOW) | 1 | |
| 1 | 61100-AAL-E00V | FENDER A FRONT (POLESTAR BLUE) | 1 | |
| 1 | 61100-AAL-E00W | FENDER A FRONT (MATT VERNIER GREY) | 1 | |
| 1 | 61100-AAL-E00Z | SET, FR. FENDER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 2 | 61110-AAL-E00 | FENDER, B, FR . | 1 | |
| 3 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 4 | 90107-AAY-400 | BOLT, BODY COVER SET | 2 | |
| 5 | 33741-AAN-601 | REFLEX REFLECTOR FRONT | 2 | |
| 5 | 33741-AAG-B01 | REFLEX REFLECTOR | 2 | |
| 6 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 7 | 61115-AAL-D00 | FENDER A FR GARNISH (ZX). | 1 | |
