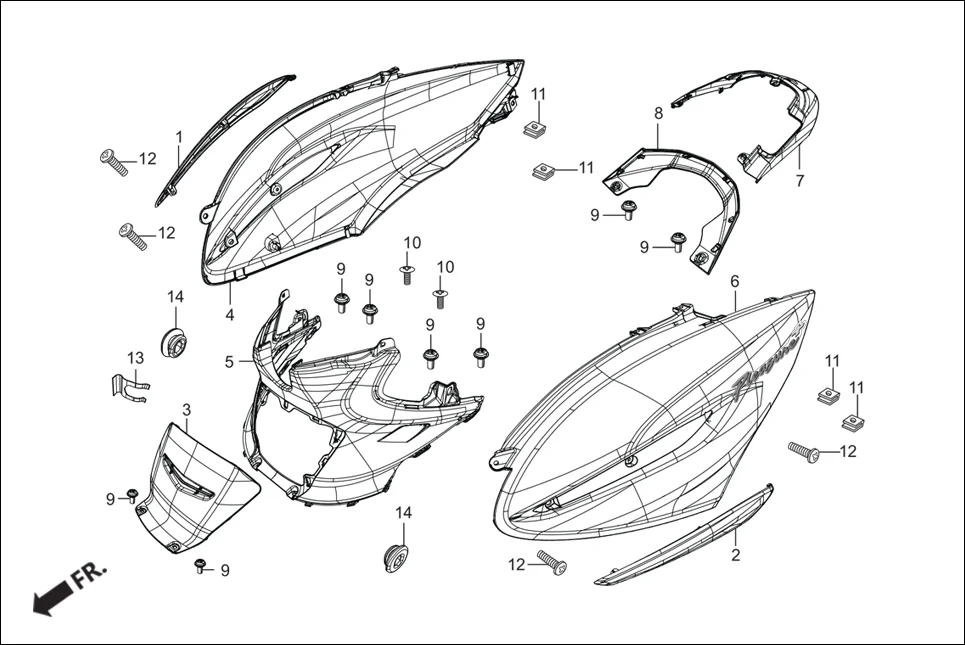

F-8-VX - BODY COVER
Hero Pleasure + BSVI (Jan, 2020) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | NOT SERVICEABLE | GUARD ENGINE | 1 | |
| 3 | 80151-AAL-500 | COVER, CENTER | 1 | |
| 4 | 83450-AAL-500R | SET, R. BODY COVER (BLACK, NH-1) | 1 | |
| 4 | 83450-AAL-500S | SET, R. BODY COVER (SPORTS RED) | 1 | |
| 4 | 83450-AAL-500U | SET, R. BODY COVER (MATT METALLIC RED) | 1 | |
| 4 | 83450-AAL-500V | SET, R. BODY COVER (POLESTAR BLUE) | 1 | |
| 4 | 83450-AAL-500W | SET, R. BODY COVER (MATT VERNIER GREY) | 1 | |
| 4 | 83450-AAL-500X | SET, R. BODY COVER (BOTTLE GREEN) | 1 | |
| 4 | 83450-AAL-500Z | SET, R. BODY COVER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 5 | 80152-AAL-500 | COVER CENTER A | 1 | |
| 6 | 83550-AAL-500R | SET, L. BODY COVER (BLACK, NH-1) | 1 | |
| 6 | 83550-AAL-500S | SET, L. BODY COVER (SPORTS RED) | 1 | |
| 6 | 83550-AAL-500U | SET, L. BODY COVER (MATT METALLIC RED) | 1 | |
| 6 | 83550-AAL-500V | SET, L. BODY COVER (POLESTAR BLUE) | 1 | |
| 6 | 83550-AAL-500W | SET, L. BODY COVER (MATT VERNIER GREY) | 1 | |
| 6 | 83550-AAL-500X | SET, L. BODY COVER (BOTTLE GREEN) | 1 | |
| 6 | 83550-AAL-500Z | SET, L. BODY COVER (PEARL SILVER WHITE EX SPARKLE ME.) | 1 | |
| 7 | 83700-AAL-500R | SET, COVER RR CENTER (BLACK, NH-1) | 1 | |
| 8 | 83702-AAL-500 | COVER, RR. CENTER, LOWER | 1 | |
| 9 | 90101-GE0-000 | SCREW, HINGE PATCH | 8 | |
| 10 | 90116-KTP-900 | SCREW WASH 5X16 | 2 | |
| 11 | 90677-KAN-961 | NUT CLIP 5MM | 4 | |
| 12 | 93903-34380 | SCREW, TAPPING, 4X12 | 4 | |
| 13 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 14 | 83551-GE2-000 | GROMMET, AIR CLENER CASE | 2 | |
