HERO

OEM Part

HERO

OEM Part

50300-AAZ-000T

SET L. SHROUD (BLACK-3) NH-1

Qty Required: 1 Ref #15 in Assembly

Part of Assembly

39 parts in this assembly

Assembly Diagram

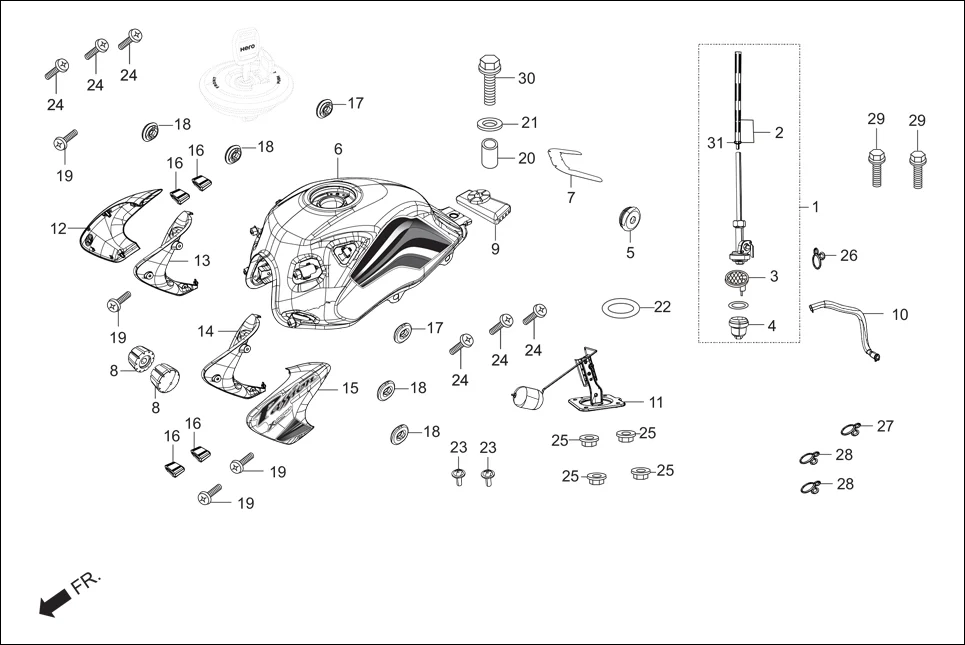

F-11 FUEL TANK diagram showing 50300-AAZ-000T

Ref #15

Supported Vehicles2

HERO Passion X PRO (Jan, 2019)

HERO Passion X PRO (Jan, 2019)

HERO Passion X PRO (Jan, 2018)

HERO Passion X PRO (Jan, 2018)

Related Parts

16950-AAZ-00099

COCK ASSY. FUEL

16952-AAZ-00099

SET, FUEL STRAINER SCREEN

CUP, FUEL STRAINER

SET ILLUST FUEL TANK

View all 39 parts in this assembly
