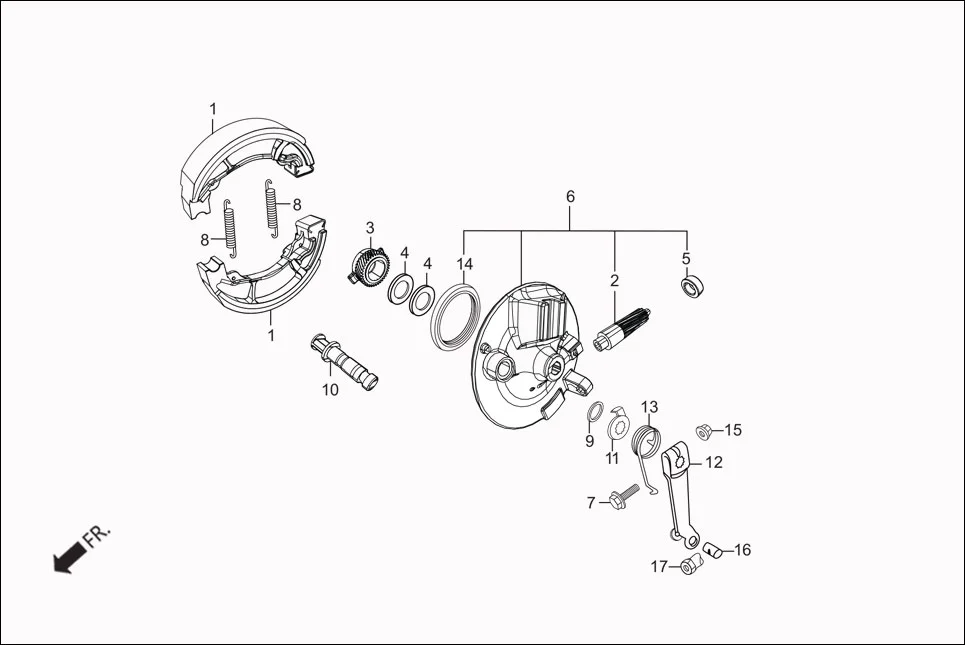

F-6 - FR. BRAKE (BRAKE SHOE/PANEL ASSY.)
Hero Passion Pro (Jan, 2018) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 2 | 44805-KTC-900 | PINION, SPEEDOMETER | 1 | |
| 3 | 44806-KST-900 | GEAR, SPEEDOMETER | 1 | |
| 6 | 45010-AAC-030 | PANEL SUB FRONT BRAKE | 1 | |
| 7 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 8 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 9 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 10 | 45141-KTC-900 | CAM FR. BRAKE | 1 | |
| 11 | 45145-096-650 | INDICATOR, FR. BRAKE | 1 | |
| 12 | 45410-KTR-A20 | ARM, FR. BRAKE | 1 | |
| 13 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
| 14 | 91251-GK4-000 | OIL SEAL, 47X60X7 | 1 | |
| 16 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 17 | 95015-42000 | NUT B ADJUST | 1 | |
