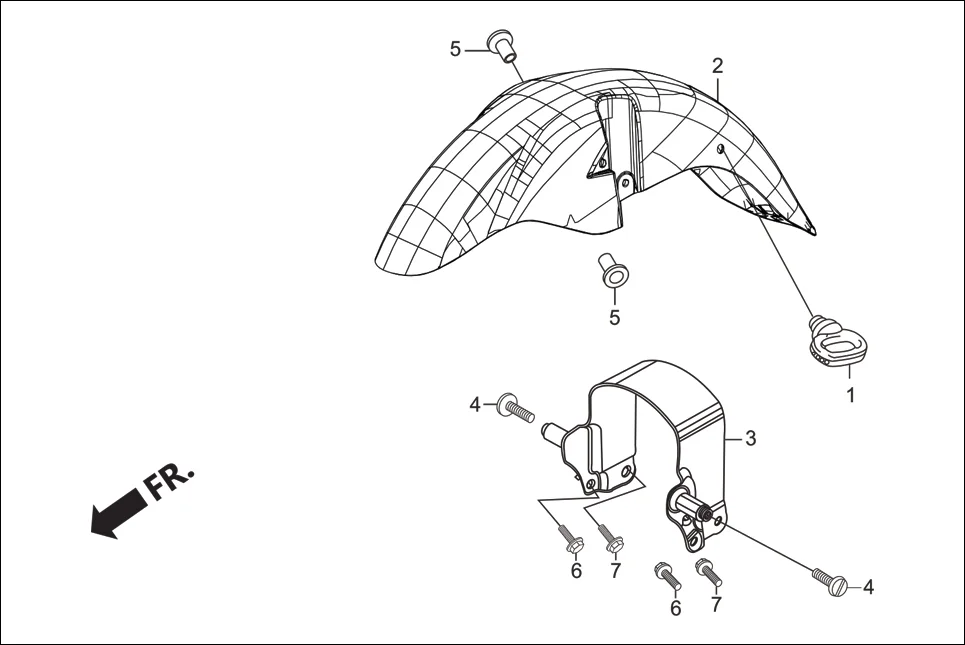

F-4 - FRONT FENDER
Hero Passion Pro (Jan, 2018) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 45451-KCC-900 | GUIDE, FR. FENDER CABLE | 1 | |
| 2 | 61101-AAC-220U | SET, FR FENDER(SRD, R-321) | 1 | |
| 2 | 61101-AAC-220W | SET, FR FENDER(FSM, NH-411M) | 1 | |
| 2 | 61101-AAT-000T | FR. FENDER (FROST BLUE ME.) | 1 | |
| 2 | 61101-AAC-220R | SET, FR FENDER(BLK, NH-1 ) | 1 | |
| 2 | 61101-AAT-000V | FR. FENDER (HEAVY GRAY ME.)(T1) | 1 | |
| 3 | 61102-KWA-910 | PLATE, FRONT FENDER | 1 | |
| 4 | 90104-KCC-870 | SCREW, SPECIAL , 6 X 12 | 2 | |
| 5 | 90501-KCC-870 | COLLAR, FR. FENDER SET | 2 | |
| 6 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 2 | |
