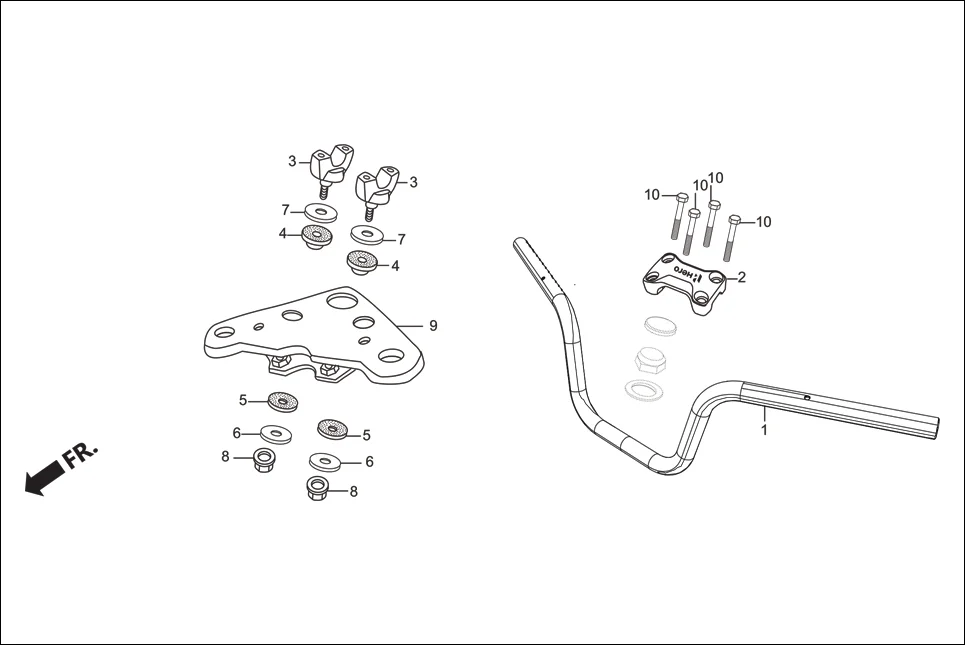

F-3D - HNDL.& HNDL.COVER (PIPE STRG. HANDLE/BRIDGE COMP. FORK TOP)
Hero Passion Pro (Jan, 2018) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 53100-AAT-000 | PIPE STRG. HANDLE | 1 | |
| 2 | 53131-AAF-H00 | HOLDER HANDLE UP. | 1 | |
| 3 | 53132-124-000 | HOLDER, HANDLE PIPE UNDER | 2 | |
| 4 | 53133-198-900 | RUBBER, HANDLE CUSHION UPPER | 2 | |
| 5 | 53134-028-000 | RUBBER, HANDLE CUSHION UNDER | 2 | |
| 6 | 53135-198-900 | WASHER, HANDLE CUSHION | 2 | |
| 7 | 53136-198-900 | PLATE, HANDLE CUSHION | 2 | |
| 8 | 90304-KST-942 | NUT FLG.PT 10MM | 2 | |
| 9 | 53230-KST-950 | BRIDGE COMP., FORK TOP | 1 | |
| 10 | 90023-KL8-730 | BOLT SPECIAL 6X28 | 4 | |
