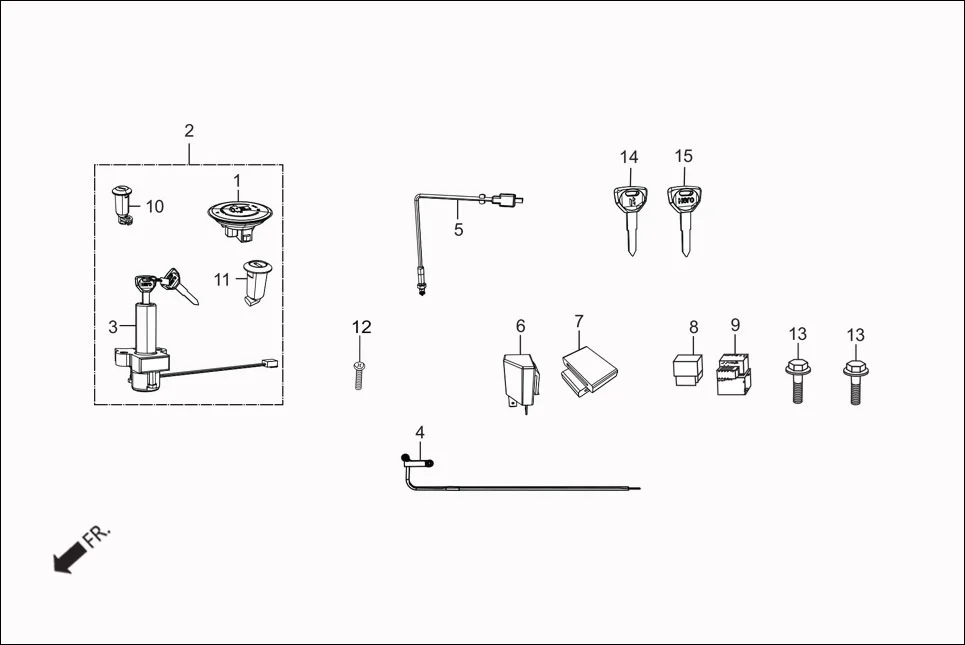

F-3B - SW.& RELAY (SW. ASSY. COMB & LOCK/KEY SET)
Hero Passion Pro (Jan, 2018) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17620-AAT-00099 | CAP COMP. FUEL FILLER | 1 | |
| 2 | 35010-AAT-00099 | KEY SET | 1 | |
| 3 | 35100-AAD-A01 | SW ASSY. COMB & LOCK | 1 | |
| 4 | 35140-AAD-00099 | SENSOR ASSY SIDE STAND | 1 | |
| 5 | 35350-KWH-960 | SW ASSY REAR STOP | 1 | |
| 6 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 7 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 8 | 38501-AAE-30099 | RELAY COMP START | 1 | |
| 8 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 9 | 38506-KWA-840 | SUSP. START RELAY | 1 | |
| 10 | 77239-AAL-H00 | KEY SEAT LOCK | 1 | |
| 10 | 77239-AAT-002 | KEY SEAT LOCK | 1 | |
| 11 | 83550-AAT-00099 | LOCK SIDE COVER | 1 | |
| 12 | 93891-05014-18 | SCREW, WASHER, 5 X 14 | 1 | |
| 13 | 96700-08020-00 | BOLT SOCKET, 8 MM | 2 | |
| 14 | 35121-AAF-H00 | KEY BLANK NO 1 | 1 | |
| 15 | 35122-AAF-H00 | KEY BLANK NO 2 | 1 | |
