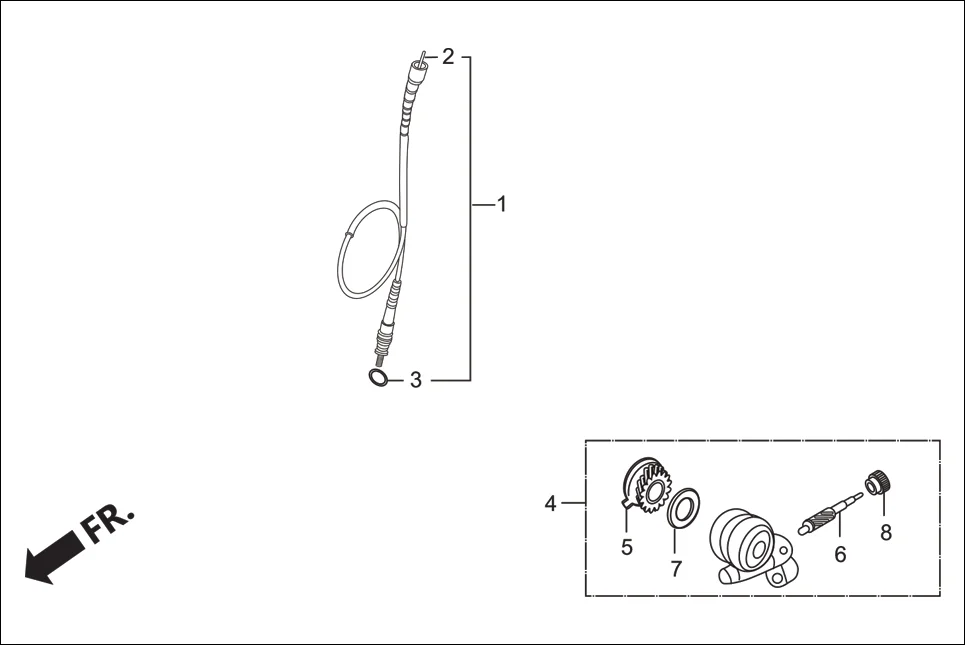

F-2A-DISC - SPEEDOMETER. GEAR & SPEEDOMETER. CABLE
Hero Passion Pro (Jan, 2018) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 44830-AAC-000 | CABLE COMP. SPDMT. | 1 | |
| 3 | 91352-GAZ-930 | O-RING 8.5X11.5 | 1 | |
| 4 | 44800-KVE-901 | GEAR BOX ASSY., SPDMT. (MGM) | 1 | |
| 5 | 44804-KVE-901 | GEAR, SPEEDOMETER | 1 | |
| 6 | 44805-KVE-901 | PINION, SPEEDOMETER | 1 | |
| 7 | 44809-170-000 | WASHER, SPEEDOMETER GEAR | 1 | |
| 8 | 44810-KTC-900 | BUSH, PINION | 1 | |
