F-25A-GUARD SARI

HeroPassion Pro (Jan, 2018) · 4 parts

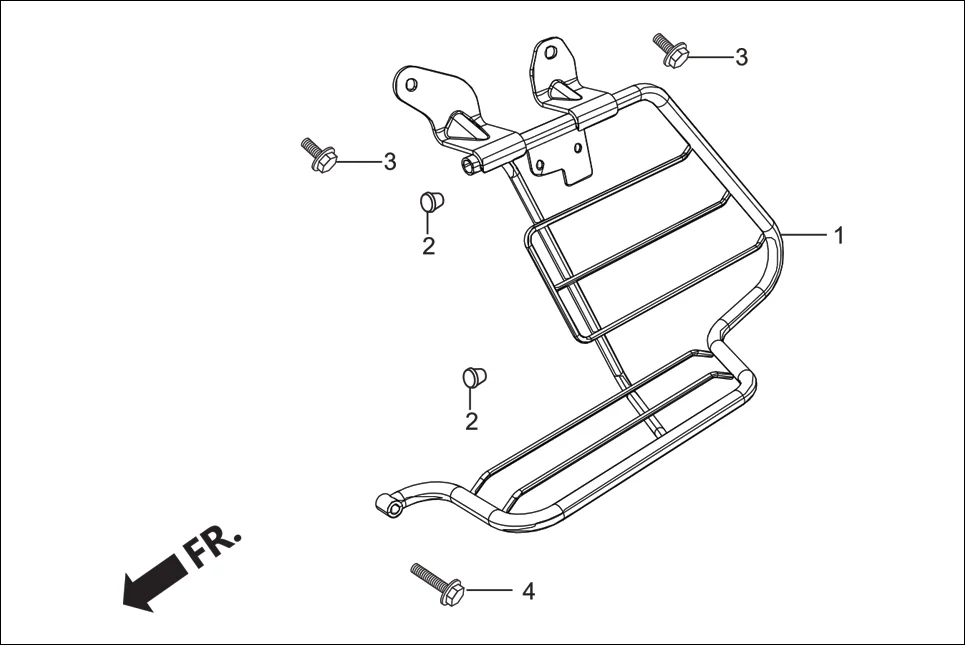

F-25A GUARD SARI assembly diagram for Hero Passion Pro (Jan, 2018)

Parts in This Assembly (4)

Ref #Part NumberDescriptionQty
151103-AAT-000GUARD SARI1
251106-KCC-900CAP, GUARD SARI1
395701-08016-07BOLT FLANGE, 8 X 162
495701-08030-00BOLT,FLANGE, 8 X 301
