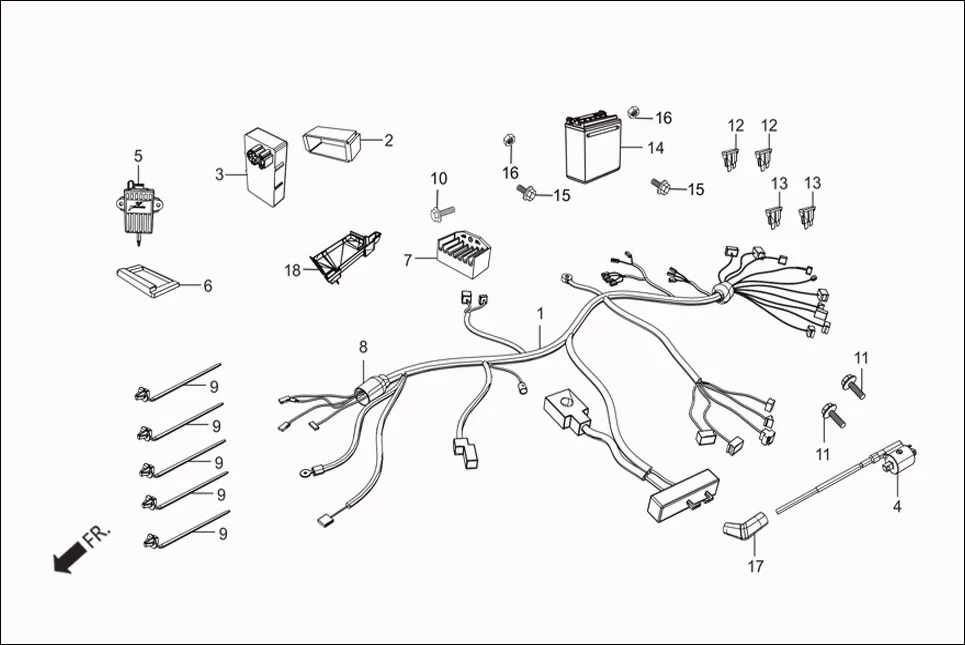

F-21 - ELECTRICALS (WIRE HARNESS)
Hero Passion Pro (Jan, 2018) · 15 parts
Parts in This Assembly (15)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32100-AAT-010 | HARNESS WIRE | 1 | |
| 2 | 30401-ABA-001 | CUSHION CDI & I3S | 1 | |
| 3 | 30480-ABA-001 | UNIT COMP CDI & I3S | 1 | |
| 4 | 30500-AAT-00099 | COIL ASSY IGN | 1 | |
| 7 | 31600-ABA-001 | REG. RECT. COMP | 1 | |
| 8 | 32108-KE8-000 | COVER ,CONNECTOR | 1 | |
| 9 | 91540-S30-003 | CLIP BAND, HARN | 5 | |
| 10 | 95701-06014-00 | BOLT, FLANGE, 6 X 14 | 1 | |
| 12 | 98200-31000 | BLADE, FUSE 10A | 2 | |
| 13 | 98200-31500 | BLADE, FUSE, 15A | 2 | |
| 14 | 31500-KVT-801 | BATTERY, ASSY. | 1 | |
| 15 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 16 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 17 | 30700-AAE-30099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 18 | 50325-AAC-220 | BOX UPPER, BATTERY | 1 | |
