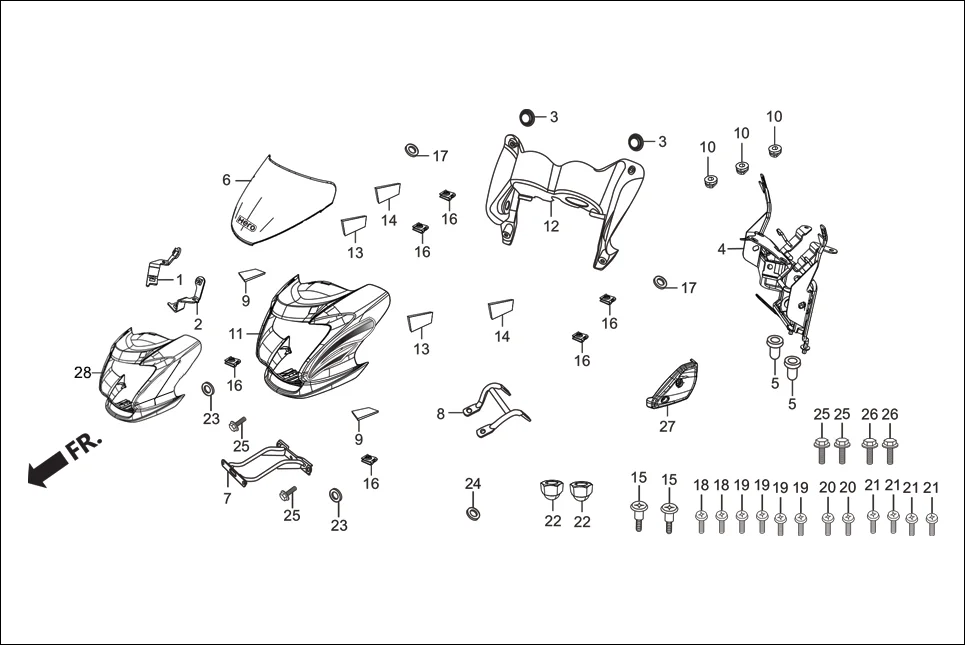

F-1A - FR.COVER
Hero Passion Pro (Jan, 2018) · 31 parts
Parts in This Assembly (31)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61302-KWA-830 | STAY, R FR. SCREEN | 1 | |
| 2 | 61303-KWA-830 | STAY, L FR. SCREEN | 1 | |
| 3 | 61306-KWA-940 | PLUG PANNEL SET | 2 | |
| 4 | 61311-AAT-000 | STAY, FR. COWL | 1 | |
| 5 | 61312-149-300 | BOOT, HEADLIGHT BRACKET | 2 | |
| 6 | 64100-AAT-000 | SET WIND SCREEN | 1 | |
| 7 | 64315-KWA-940 | STAY FRONT NUMBER PLATE | 1 | |
| 8 | 64316-KWA-940 | STAY FRONT VISOR LOWER | 1 | |
| 9 | 77232-KVE-900 | CUSHION COWL CENTER B. | 2 | |
| 10 | 80101-443-000 | RUBBER, RR. FENDER CUSHION | 3 | |
| 11 | 83400-AAT-000R | SET FR VISOR (SPORTS RED) | 1 | |
| 11 | 83400-AAT-000S | SET FR VISOR (FORCE SILVER ME.) | 1 | |
| 11 | 83400-AAT-000T | SET FR VISOR (FROST BLUE ME.) | 1 | |
| 11 | 83400-AAT-000U | SET FR VISOR (BLACK NH-1) | 1 | |
| 11 | 83400-AAT-000V | SET FR VISOR (HEAVY GRAY ME.)(T1) | 1 | |
| 12 | 83402-KWA-830 | PANNEL, INNER | 1 | |
| 13 | 83405-KWA-830 | CUSHION FRONT VISOR | 2 | |
| 14 | 83407-KWA-830 | CUSHION, FR.VISOR | 2 | |
| 15 | 90101-GE0-000 | SCREW, HINGE PATCH | 2 | |
| 16 | 90320-GC3-000 | NUT, SPRING, M5 | 6 | |
| 17 | 90504-KWA-940 | WASHER SCREEN | 2 | |
| 18 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 19 | 91509-KWA-830 | SCREW, PAN 5X18.5 | 4 | |
| 20 | 93500-05012-0A | SCREW PAN, 5 X 12 | 2 | |
| 21 | 93903-24310 | SCREW, TAPPING, 4X12 | 4 | |
| 22 | 94021-06000-0S | NUT, HEX CAP 6MM | 2 | |
| 23 | 94101-05000 | WASHER , PLAIN, 5MM | 2 | |
| 24 | 94101-08000 | WASHER, PLAIN, 8MM | 1 | |
| 25 | 96001-06010-00 | BOLT FLANGE SH. 6×10 | 2 | |
| 26 | 96001-06016-07 | BOLT, FLANGE, SH. 6 X 16 | 2 | |
| 27 | 83511-AAT-000 | COVER FRONT UNDER | 1 | |
