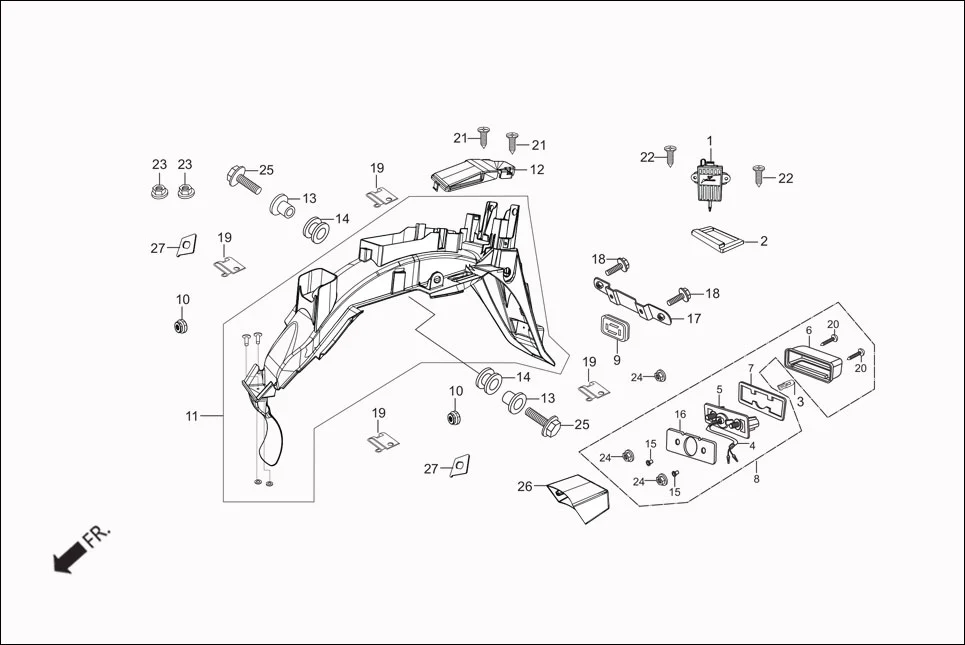

F-18 - REAR FENDER
Hero Passion Pro (Jan, 2018) · 21 parts
Parts in This Assembly (21)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31300-AAT-001 | USB CHARGER ASSY | 1 | |
| 2 | 31301-AAW-001 | GASKET, USB CHARGER | 1 | |
| 3 | 34351-AAB-401 | BULB (12VW5W) E MARK | 1 | |
| 4 | 33721-KVE-900 | SOCKET, COMP | 1 | |
| 5 | 33722-KVE-900 | BASE COMP. | 1 | |
| 6 | 33723-KVE-900H | COVER COMP. | 1 | |
| 7 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 8 | 3372B-AAG-30099 | LIGHT ASSY LICENSE | 1 | |
| 9 | 33741-KST-920 | REFLEX REFLECTOR | 1 | |
| 10 | 61304-KRY-900 | RUBBER,LIGHT CASE MOUNT | 2 | |
| 11 | 80100-AAT-000 | FENDER, COMP REAR | 1 | |
| 12 | 80102-AAT-000 | COVER TOOL BOX | 1 | |
| 15 | 80202-KVE-900 | COLLAR LICENSE LIGHT | 2 | |
| 16 | 80203-KVE-900 | RUBBER LICENSE LIGHT | 1 | |
| 17 | 84701-KCC-710 | BRACKET NO. PLATE | 1 | |
| 18 | 95701-06016-00 | BOLT, FLANGE, 6X16 | 2 | |
| 20 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 22 | 93903-35320 | SCREW, TAPPING, 5X16 | 2 | |
| 23 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
| 26 | 80201-AAT-000 | BASE LICENSE LIGHT | 1 | |
| 27 | 61315-AAA-000 | STAY WINKER | 2 | |
