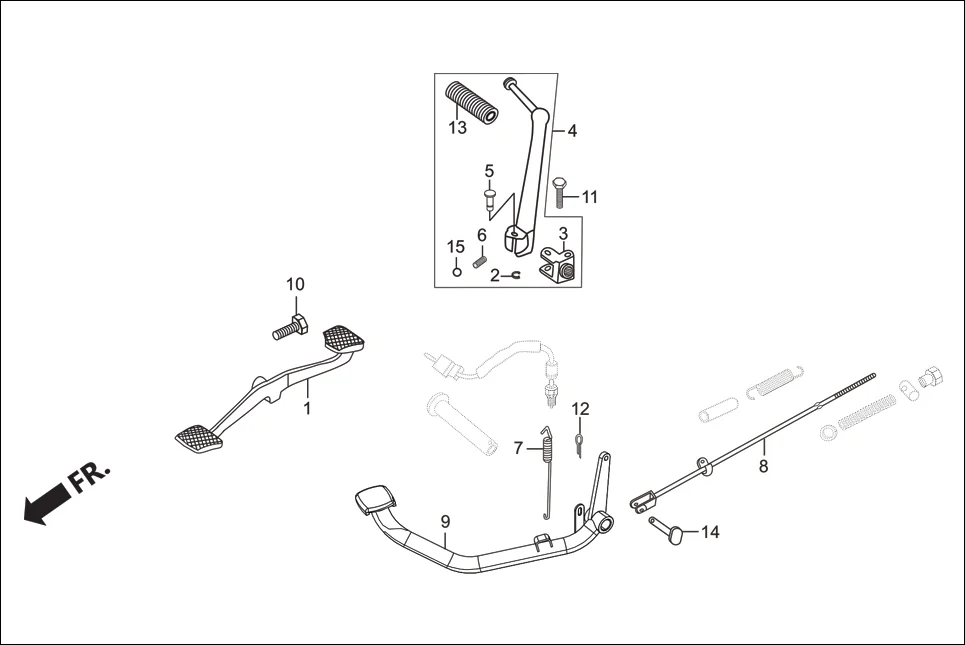

F-15A - PEDAL
Hero Passion Pro (Jan, 2018) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 24701-KWA-940 | PEDAL, GEAR CHANGE | 1 | |
| 2 | 28293-KAG-900 | CLIP, KICK STARTER | 1 | |
| 3 | 28302-KAG-900 | JOINT, KICK ARM | 1 | |
| 4 | 2830A-KWH-760 | ARM S/ASSY. KICK STARTER | 1 | |
| 5 | 28321-355-000 | PIN, KICK STARTER | 1 | |
| 6 | 28333-124-000 | SPRING, KICK STARTER STOPPER | 1 | |
| 7 | 35357-ABA-000 | SPRING, STOP SWITCH | 1 | |
| 8 | 43451-KCC-600 | ROD COMP. RR. BRAKE | 1 | |
| 9 | 46500-AAT-000 | PEDAL, BRAKE | 1 | |
| 10 | 92000-06020-0H | BOLT HEX., 6 X 20 | 1 | |
| 11 | 92101-06032-0A | BOLT, FLANGE, 6 X 32 | 1 | |
| 13 | 95011-51000 | RUBBER, A KICK STARTER | 1 | |
| 14 | 95015-53000 | PIN, C JOINT | 1 | |
