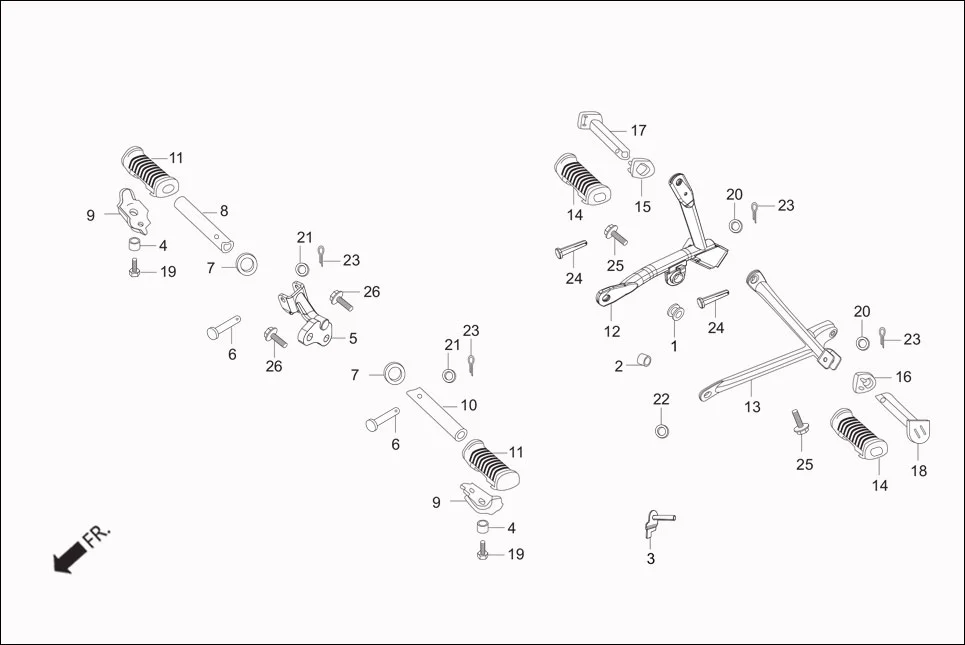

F-15-STEP ASSY
HeroPassion Pro (Jan, 2018) · 26 parts
Parts in This Assembly (26)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18421-ABA-000 | RUBBER MUFF MOUNT | 1 | |
| 2 | 18442-ABA-000 | COLLAR MUFFLER MOUNT | 1 | |
| 3 | 1844A-ABA-000 | MUFF MOUNT BOLT ASSY | 1 | |
| 4 | 37243-323-000 | COLLAR , METER SET | 2 | |
| 5 | 50160-KCC-900 | BRACKET COMP., R STEP | 1 | |
| 6 | 50603-KB4-000 | PIN, MAIN STEP BAR JOINT | 2 | |
| 7 | 50614-413-000 | WASHER, MAIN STEP | 2 | |
| 8 | 50618-KCC-000 | BAR R STEP | 1 | |
| 9 | 50619-425-010 | STOPPER, STEP RUBBER | 2 | |
| 10 | 50619-KCC-000 | BAR L STEP | 1 | |
| 11 | 50661-425-670 | RUBBER STEP | 2 | |
| 12 | 50701-AAT-000 | BRKT COMP, R. PILLION STEP | 1 | |
| 13 | 50702-KST-940 | BRACKET COMP. L PILLION STEP | 1 | |
| 14 | 50710-461-770 | RUBBER, STEP PILLION | 2 | |
| 15 | 50712-438-730 | WASHER, R PILLON STEP | 1 | |
| 16 | 50713-438-730 | WASHER L PILLOIN STEP | 1 | |
| 17 | 50715-AAT-000 | BAR R PILLION STEP | 1 | |
| 18 | 50718-KCC-900 | BAR L PILLION STEP | 1 | |
| 19 | 92000-06016-0A | BOLT, HEX., 6 X 16 | 2 | |
| 20 | 94101-06000 | WASHER, PLAIN, 6 MM | 2 | |
| 21 | 94101-08000 | WASHER, PLAIN, 8MM | 2 | |
| 22 | 94103-08700 | WASHER PLAIN 8MM | 1 | |
| 23 | 94201-16150 | PIN, SPLIT, 1.6 X 15 | 4 | |
| 24 | 95015-81000 | PIN A PILLION STEP | 2 | |
| 25 | 95701-08016-07 | BOLT FLANGE, 8 X 16 | 2 | |
| 26 | 95701-10045-07 | BOLT FLANGE, 10 X 45 | 2 |
