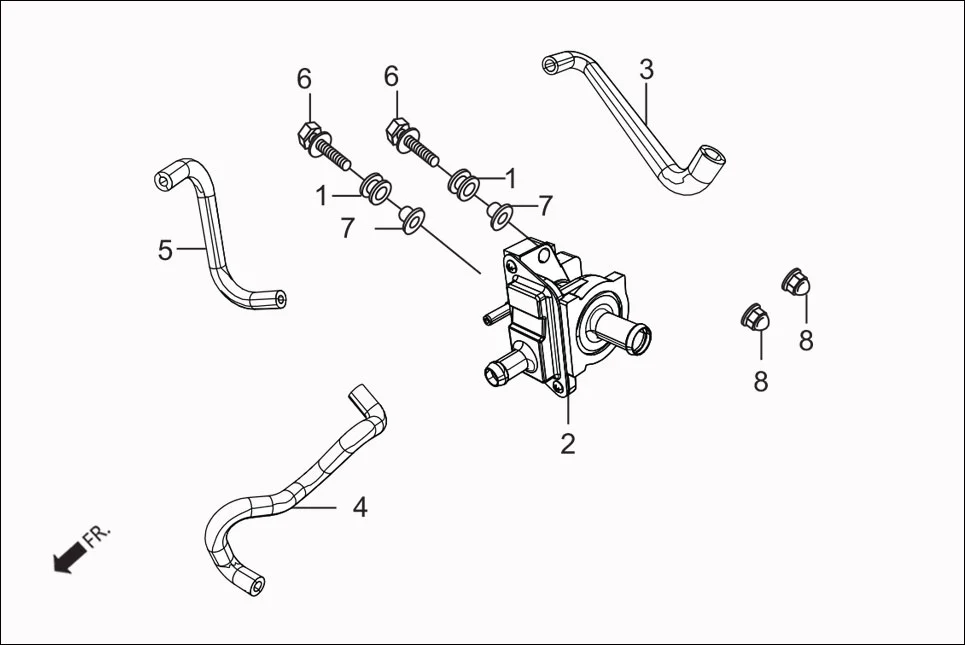

F-13A-AIR CLEANER (VALVE ASSY AIR SUCTION)
HeroPassion Pro (Jan, 2018) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 2 | 18600-ABA-000 | VALVE ASAY AIR SUCTION | 1 | |
| 3 | 18651-AAT-000 | TUBE ASV CONTROL | 1 | |
| 4 | 18652-AAT-000 | TUBE B ASV | 1 | |
| 5 | 18653-AAT-000 | TUBE A ASV | 1 | |
| 6 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 7 | 90501-KC2-750 | WASHER, REGULATOR SETTING | 2 | |
| 8 | 94021-06000-0S | NUT, HEX CAP 6MM | 2 |
