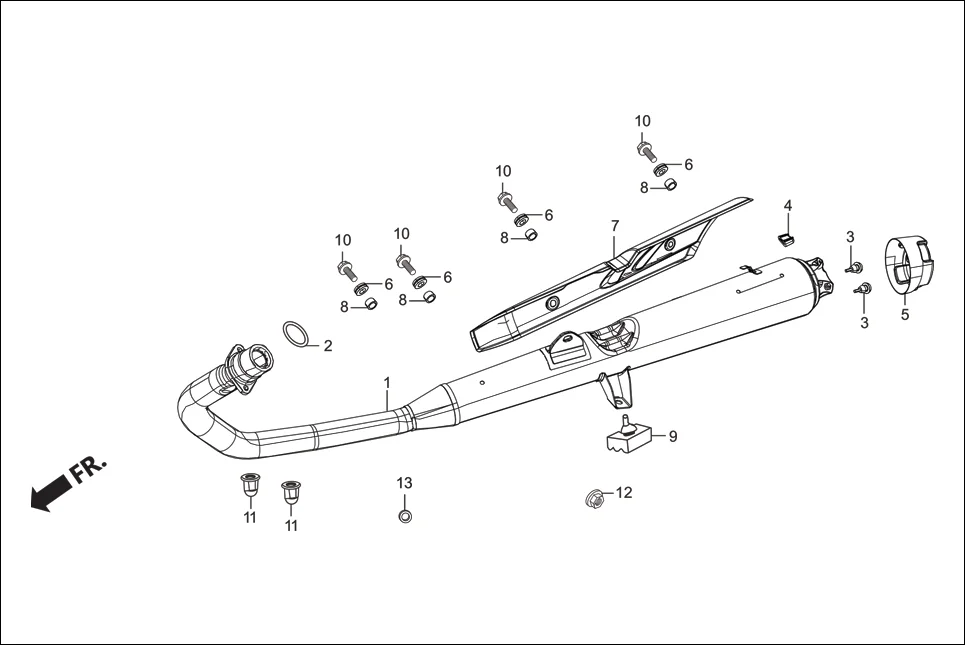

F-14 - MUFFLER
Hero Passion Pro (Jan, 2018) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18350-ABA-000 | MUFFLER COMP, EXHAUST | 1 | |
| 2 | 18291-AAT-000 | GASKET EX PIPE | 1 | |
| 3 | 18293-AAY-000 | RUBBER PKG. PROTECTOR | 2 | |
| 4 | 18293-KPK-900 | RUBBER, PKG. PROTECTOR | 1 | |
| 5 | 18340-AAT-000 | COVER TAIL CAP | 1 | |
| 6 | 18345-MBT-610 | RUBBER, PROTECTOR, MOUNT | 4 | |
| 7 | 18355-ABA-000 | COVER, MUFFLER | 1 | |
| 8 | 33619-459-840A | COLLAR,WINKER STAY | 4 | |
| 9 | 50505-KCC-900 | STOPPER RUBBER, A STAND | 1 | |
| 10 | 90107-KAN-900 | BOLT, BODY COVER SET | 4 | |
| 11 | 90304-438-000 | NUT, HEX. CAP, 6 MM | 2 | |
| 12 | 90305-KSP-900 | NUT, 8MM EXP. | 1 | |
| 13 | 94103-08700 | WASHER PLAIN 8MM | 1 | |
