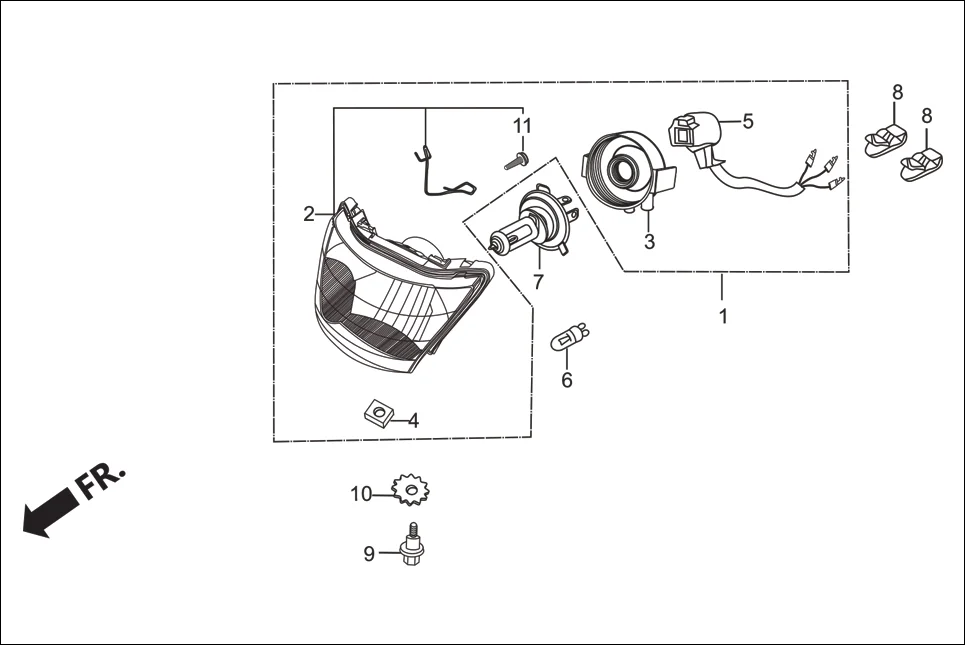

F-1 - HEAD LIGHT
Hero Passion Pro (Jan, 2018) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3310B-AAC-20099 | LIGHT ASSY., HEAD (W/O BULB) | 1 | |
| 2 | 33120-AAC-20099 | UNIT, HEAD LIGHT | 1 | |
| 3 | 33126-KCC-730 | RUBBER COVER | 1 | |
| 4 | 33128-GBL-000 | NUT, SPECIAL | 1 | |
| 5 | 33130-KWA-831 | SOCKET COMP., HEAD LIGHT | 1 | |
| 6 | 33301-KVE-900 | BULB, WEDGE BASE (T10, 12V-5W) | 1 | |
| 7 | 34901-KSP-910 | BULB, HEAD LIGHT | 1 | |
| 8 | 53209-GAH-000 | CLIP, HEADLIGHT | 2 | |
| 9 | 90101-GJ6-000 | BOLT, ADJUST | 1 | |
| 10 | 90307-GJ6-000 | WASHER, LOCK, 6 MM | 1 | |
| 11 | 93901-44220 | SCREW, TAPPING,4X10 | 1 | |
