HERO OEM Part

51500-KWA-941

FORK ASSY., L FRONT

Qty Required: 1 Ref #15 in Assembly

Part of Assembly

F-7-DRUM
FRONT FORK
22 parts in this assembly

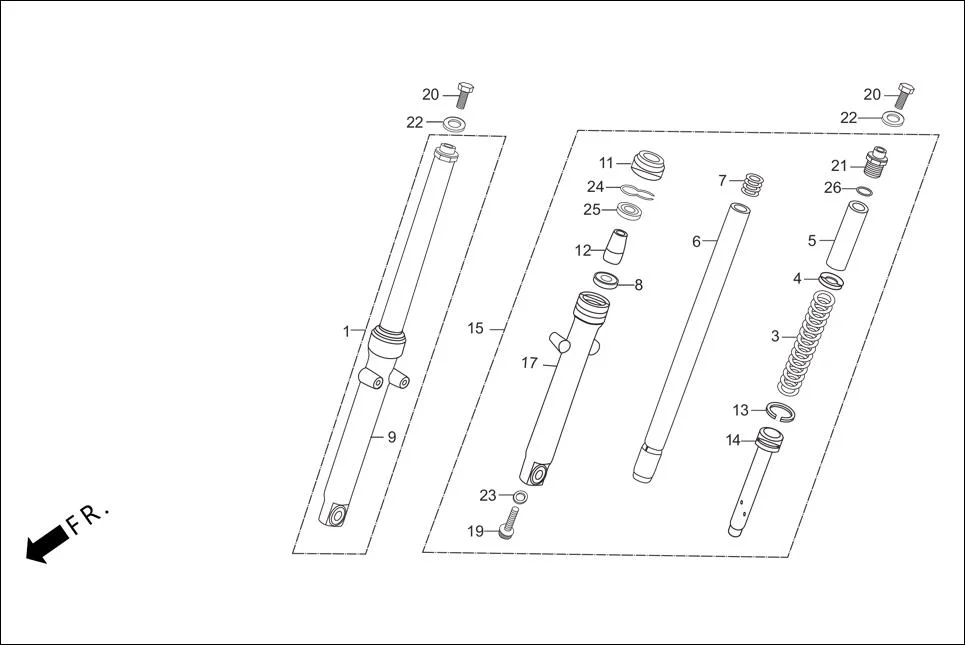

Assembly Diagram

F-7-DRUM FRONT FORK diagram showing 51500-KWA-941
Ref #15

Supported Vehicles43

HHERO Passion Pro (Jan, 2014)
HERO Passion Pro (Jan, 2014)
Current
HHERO GLAMOUR 125CC FV BSVI(Aug,2023)
HERO GLAMOUR 125CC FV BSVI(Aug,2023)
HHERO GLAMOUR MAGNETIC OBD II(Apr., 2025)
HERO GLAMOUR MAGNETIC OBD II(Apr., 2025)
HHERO GLAMOUR REVAMP OBD-II(Sept.,2024)
HERO GLAMOUR REVAMP OBD-II(Sept.,2024)
HHERO GLAMOUR XTEC 2(Aug.,2025)
HERO GLAMOUR XTEC 2(Aug.,2025)
HHERO PASSION HZ FI(Apr. 2024)
HERO PASSION HZ FI(Apr. 2024)
HHERO PASSION PLUS(Apr.,2025)
HERO PASSION PLUS(Apr.,2025)
HHERO Passion Pro (Feb, 2017)
HERO Passion Pro (Feb, 2017)

Related Parts

51400-KWA-941
FORK ASSY., R FRONT
51401-KST-941
SPRING, FR. CUSHION
51403-447-730
JOINT, SPRING
51403-KCC-900
COLLAR, SPRING
51410-KWA-941
PIPE COMP. FR. FORK
51412-KAG-900
SPRING, REBOUND
View all 22 parts in this assembly
