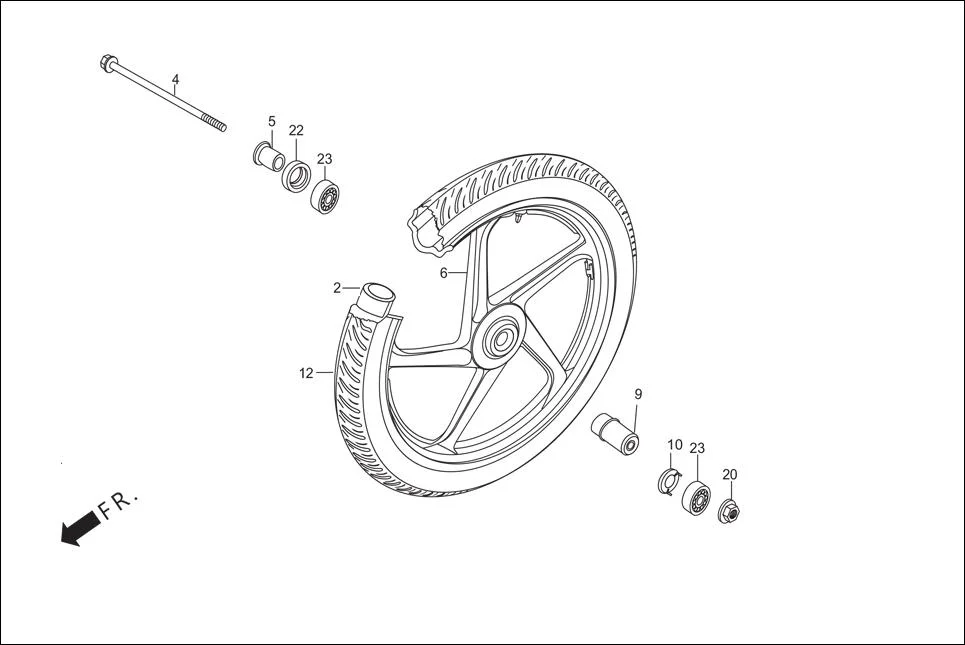

F-9-DRUM-CAST - FRONT WHEEL
Hero Passion Pro (Jan, 2014) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 42712-KCS-920 | TUBE, TYRE (2.75 X 18) | 1 | |
| 4 | 44301-KTR-700 | AXLE, FR. WHEEL | 1 | |
| 5 | 44311-KRC-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 6 | K44426AACAH00S | KIT, WHEEL COMP FRONT | 1 | |
| 9 | 44620-400-000 | COLLAR, FRONT DISTANCE | 1 | |
| 10 | 44680-410-000 | RETAINER, GEAR BOX | 1 | |
| 12 | 44711-KFN-850 | TYRE, FRONT | 1 | |
| 12 | 44711-AAN-60099 | TYRE FR | 1 | |
| 20 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 22 | 91258-KEJ-900 | DUST SEAL, 40 X 50 X 5 | 1 | |
| 23 | 96140-63010-10 | BEARING, RADIAL BALL, 6301U | 2 | |
