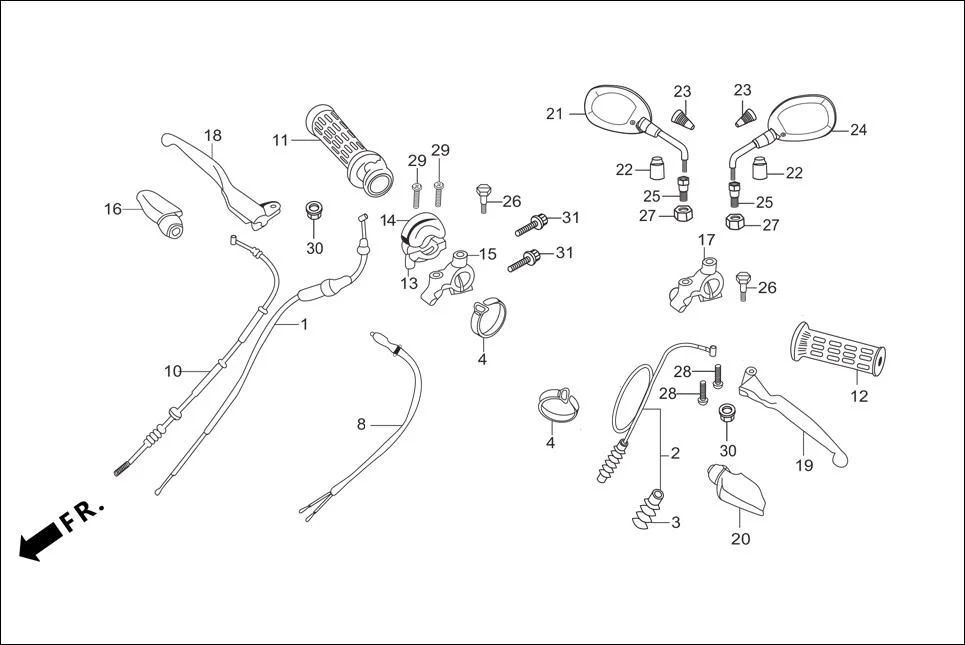

F-3-DRUM-KICK - HANDEL LEVER / SWITCH / CONTROL CABLE
Hero Passion Pro (Jan, 2014) · 35 parts
Parts in This Assembly (35)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17910-KWA-940 | CABLE COMP. THROT. | 1 | |
| 2 | 22870-KWA-940 | CABLE COMP. CLUTCH | 1 | |
| 3 | 22871-116-670 | BOOT, CLUTCH CABLE | 1 | |
| 4 | 32161-404-000 | BAND B-1,WIRE | 2 | |
| 8 | 35340-KCC-900 | SWITCH ASSY., FR. STOP | 1 | |
| 10 | 45450-AAD-000 | CABLE COMP FR BRAKE | 1 | |
| 11 | 53140-AAC-000 | GRIP COMP THROTTLE | 1 | |
| 12 | 53166-AAC-000 | GRIP L HANDLE | 1 | |
| 13 | 53167-GE4-000 | HOUSING UNDER,THROTTLE | 1 | |
| 14 | 53168-166-000 | HOUSING UPPER, THROTTLE | 1 | |
| 15 | 53171-198-900 | BRACKET R HANDLE LEVER | 1 | |
| 16 | 53171-KCC-900 | COVER R HANDLE LEVER | 1 | |
| 17 | 53172-KTC-900 | BRACKET, L HANDLE LEVER | 1 | |
| 18 | 53175-AAF-H00 | LEVER COMP.R STRG.HNDL. | 1 | |
| 19 | 53178-AAF-H00 | LEVER COMP.L STRG.HNDL. | 1 | |
| 20 | 53179-KTC-900 | COVER L HANDLE LEVER | 1 | |
| 21 | 88110-AAC-H41ZA | MIRROR ASSY R BACK-BLACK (NH-1) | 1 | |
| 21 | 88110-AAC-H41ZC | MIRROR ASSY R BACK (SPORTS RED,R-321) | 1 | |
| 21 | 88110-AAC-000V | MIRROR ASSY. R BACK(BYM,YL-002M) | 1 | |
| 21 | 88110-AAC-H41ZF | MIRROR ASSY R BACK (LEAF GREEN ME,GY-141M) | 1 | |
| 21 | 88110-AAC-H41ZE | MIRROR ASSY R BACK (FORCE SILVER ME,NH-411M) | 1 | |
| 22 | 88114-198-D10 | CAP, LOCK NUT | 2 | |
| 23 | 88115-KTR-900 | BOOT, MIRROR UPPER | 2 | |
| 24 | 88120-AAC-H41ZA | MIRROR ASSY L BACK-BLACK (NH-1) | 1 | |
| 24 | 88120-AAC-H41ZC | MIRROR ASSY L BACK (SRD,R-321) | 1 | |
| 24 | 88120-AAC-000V | MIRROR ASSY. L BACK(BYM,YL-002M) | 1 | |
| 24 | 88120-AAC-H41ZF | MIRROR ASSY L BACK (LGM,GY-141M) | 1 | |
| 24 | 88120-AAC-H41ZE | MIRROR ASSY L BACK (FSM,NH-411M) | 1 | |
| 25 | 90003-KCC-840 | BOLT, ADPT.10MM | 2 | |
| 26 | 90114-310-000 | BOLT, HANDLE LEVER PIVOT | 2 | |
| 27 | 90201-MW3-620 | NUT, HEX., 10MM | 2 | |
| 28 | 93500-05020-0G | SCREW, PAN, 5 X 20 | 2 | |
| 29 | 93500-05022-1G | SCREW, PAN, 5 X 22 | 2 | |
| 30 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 31 | 96001-06025-07 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
