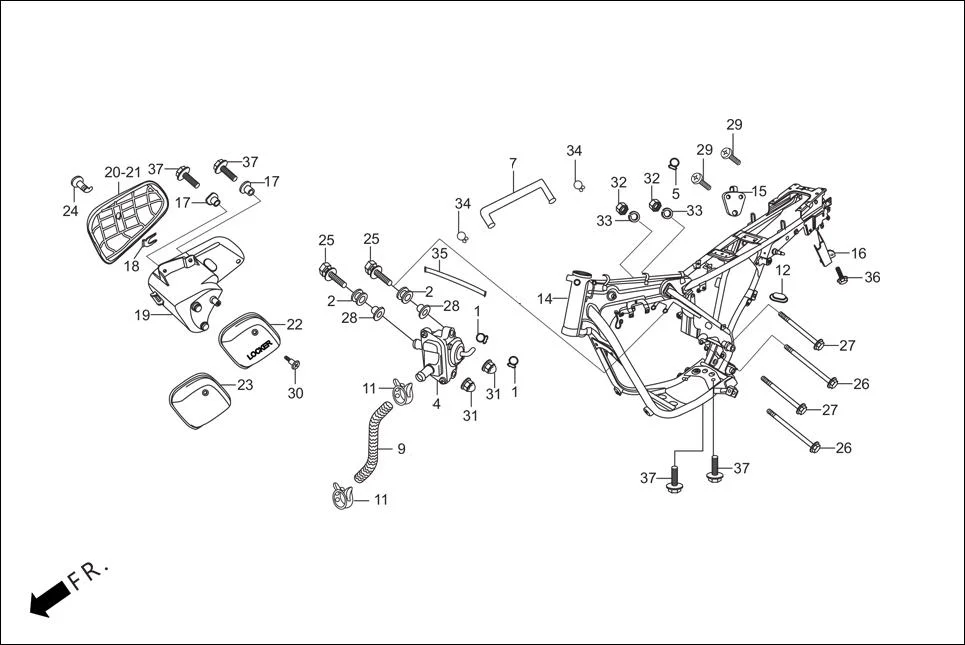

F-25-DRUM-SELF - FRAME BODY / UTILITY BOX
Hero Passion Pro (Jan, 2014) · 32 parts
Parts in This Assembly (32)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17369-198-770 | CLIP BREATHER TUBE | 2 | |
| 2 | 17622-GB7-900 | RUBBER, CUSHION | 2 | |
| 4 | 18600-KWA-940 | VALVE ASSY. AIR SUCTION | 1 | |
| 5 | 17316-611-000 | CLIP, BREATHER TUBE | 1 | |
| 7 | 18651-KWA-940 | TUBE A AVS | 1 | |
| 9 | 18652-KWA-940 | TUBE B AVS | 1 | |
| 11 | 19509-198-770 | CLAMP D 16 TUBE | 2 | |
| 12 | 32712-ZA0-000 | GROMMET, TERM/C | 1 | |
| 14 | 50100-AAC-010 | FRAME BODY COMP. | 1 | |
| 15 | 50211-KCC-900 | PLATE, ENGINE HANGER | 1 | |
| 16 | 50250-KWA-830 | COVER, SEAT LOCK, CABLE | 1 | |
| 17 | 61107-KK6-000 | WASHER, 6MM | 1 | |
| 18 | 75582-KCW-870 | SET SPG, LOCK KEY | 1 | |
| 19 | 83510-KWA-830 | BOX, COMP., UTILITY | 1 | |
| 20 | 83512-KWA-830 | COVER R UTILITY BOX | 1 | |
| 21 | 83514-KWA-840H | SET, UTILITY BOX R COVER | 1 | |
| 22 | 83518-KWA-840H | SET, UTILITY BOX L COVER | 1 | |
| 23 | 83515-KWA-940H | COVER L UTILITY BOX | 1 | |
| 24 | 83550-KWA-930 | LOCK SIDE COVER | 1 | |
| 25 | 90101-KCC-940 | BOLT WASH, 6 X 25 | 2 | |
| 26 | 90116-KCC-900 | BOLT FLANGE, 8 X 97 | 2 | |
| 27 | 90117-KCC-900 | BOLT, FLANGE, 8 X 110 | 2 | |
| 28 | 90501-KC2-750 | WASHER, REGULATOR SETTING | 2 | |
| 29 | 91509-GE2-760 | SCREW, WASHER, 5 X 11.5 | 2 | |
| 30 | 93903-25280 | SCREW, TAPPING 5X12 | 1 | |
| 31 | 94021-06000-0S | NUT, HEX CAP 6MM | 2 | |
| 32 | 94030-08000 | NUT, HEX., 8 MM | 2 | |
| 33 | 94111-08000 | WASHER, SPRING, 8MM | 2 | |
| 34 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 35 | 95005-35170-20 | TUBE 3.5×170 | 1 | |
| 36 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
| 37 | 95701-06016-07 | BOLT, FLANGE, 6 X 16 | 4 | |
