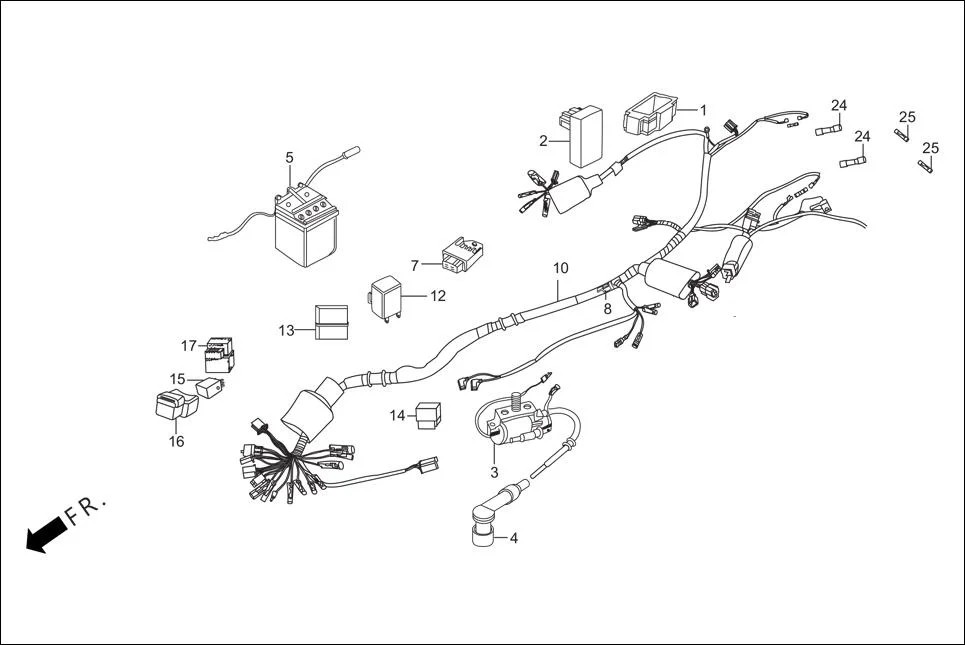

F-24-SELF - WIRE HARNESS / BATTERY
Hero Passion Pro (Jan, 2014) · 17 parts
Parts in This Assembly (17)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 30401-KTE-910 | CUSHION, C.D.I. UNIT | 1 | |
| 2 | 30410-KWA-931 | UNIT COMP CDI | 1 | |
| 3 | 30500-AAF-H00 | COIL ASSY.IGN. | 1 | |
| 4 | 30700-ACK-00099 | CAP ASSY NOISE SUPPRESSOR | 1 | |
| 5 | 31500-KWS-801 | BATTERY ASSY., MF3-BS | 1 | |
| 7 | 31600-KWA-831 | REG. REC. COMP. | 1 | |
| 8 | 31700-124-000 | RECTIFIER ASSY., SILICON | 1 | |
| 10 | 32100-AAC-010 | HARNESS WIRE (SELF) | 1 | |
| 12 | 38301-AAE-20099 | RELAY COMP., WINKER | 1 | |
| 13 | 38306-GE7-000 | SUSPENSION, WINKER RELAY | 1 | |
| 14 | 38501-AAW-30099 | RELAY COMP. START | 1 | |
| 15 | 38502-KSP-910 | RELAY COMP., POWER (MICRO ISO 5P) | 1 | |
| 16 | 38506-KSP-910 | SUS., POWER RELAY | 1 | |
| 17 | 38506-KWA-840 | SUSP. START RELAY | 1 | |
| 23 | 96001-06020-00 | BOLT, FLANGE, SH. 6 X 20 | 1 | |
| 24 | 98200-31000 | BLADE, FUSE 10A | 1 | |
| 25 | 98200-31500 | BLADE, FUSE, 15A | 1 | |
