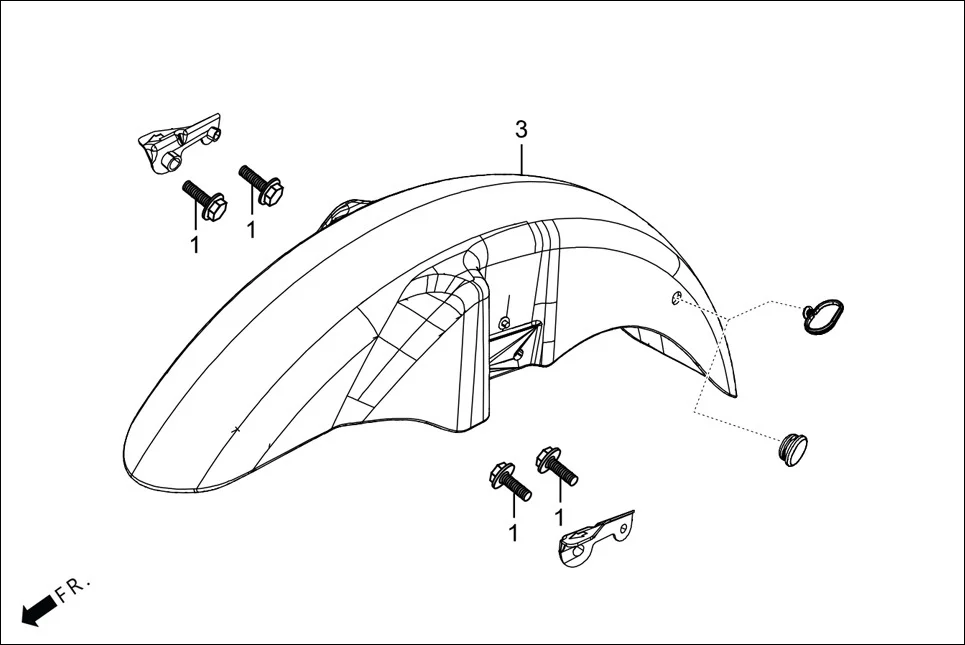

F-6-WO-T - FRONT FENDER
Hero Passion Pro(March,2023) · 4 parts
Parts in This Assembly (4)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 95701-06020-00 | BOLT, FLANGE, 6X20 | 4 | |
| 3 | 61100-AAC-B00R | SET FR FENDER (CANDY BLAZING RED (R-195C)) | 1 | |
| 3 | 61100-AAC-800Y | FENDER COMP., FR. (BLACK NH-1) | 1 | |
| 3 | 61100-AAC-800Z | FENDER COMP FR(MAT AXIS GRAY METALLIC) | 1 | |
