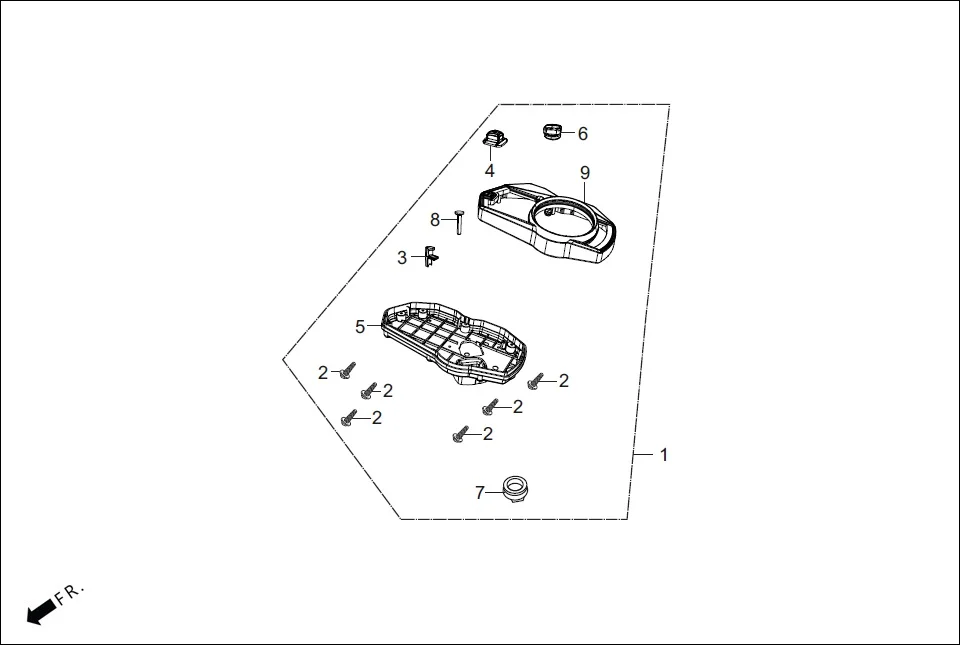

F-29B - METER ASSY (OPTIONAL)
Hero Passion-HZ(May,2023) · 12 parts
Parts in This Assembly (12)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 37100-AAC-K0099 | METER ASSY COMB | 1 | |
| 2 | 93903-22480 | SCREW TAPPING 3 X 16 | 6 | |
| 3 | 37106-AAC-831 | LIGHT GUIDE | 1 | |
| 3 | 37106-AAC-832 | LIGHT GUIDE | 1 | |
| 4 | 37104-AAC-832 | I3S SWITCH BUTTON | 1 | |
| 5 | 37112-AAC-K01 | CASE UNDER ASSY | 1 | |
| 5 | 37112-AAC-K02 | CASE UNDER ASSY | 1 | |
| 6 | 37103-AAC-832 | SWITCH RUBBER | 1 | |
| 7 | 37109-KWA-831 | CAP | 1 | |
| 8 | 37102-ABA-000 | KEY TOP | 1 | |
| 9 | 37113-AAC-K01 | CASE UPPER ASSY | 1 | |
| 9 | 37113-AAC-K02 | CASE UPPER ASSY | 1 | |
