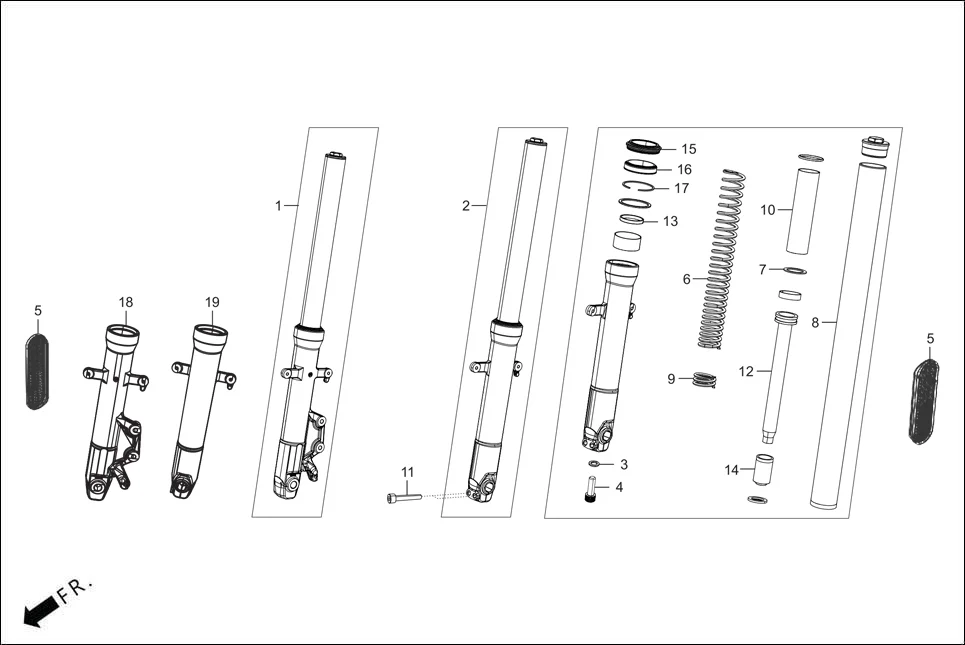

F-6A - FRONT CUSHION / STRG. STEM
Hero THUMBSUP THUNDERWHEEL(Apr.,2025) · 19 parts
Parts in This Assembly (19)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51450-ACJ-000E | SET FORK ASSY R FRONT (ANODISED BLACK) | 1 | |
| 2 | 51550-ACJ-000E | SET FORK ASSY L FRONT (ANODISED BLACK) | 1 | |
| 3 | 90544-AAB-A02 | WASHER SPECIAL | 2 | |
| 4 | 90116-AAB-A02 | BOLT SOCKET | 2 | |
| 5 | 33760-RAA-001 | REFLEX REFLECTOR FRONT | 2 | |
| 6 | 51401-ACJ-000 | SPRING FR FORK | 2 | |
| 7 | 51403-ACJ-000 | JOINT SPRING | 2 | |
| 8 | 51410-ACJ-000 | PIPE COMP FR FORK | 2 | |
| 9 | 51412-ACJ-000 | SPRING, REBOUND | 2 | |
| 10 | 51413-ACJ-000 | SPACER TUBE | 2 | |
| 11 | 96700-ACJ-000 | SOCKET BOLT 8X40 | 2 | |
| 12 | 51440-ACJ-000 | PIPE SEAT | 2 | |
| 13 | 51437-ACJ-000 | RING, PISTON | 2 | |
| 14 | 51432-ACJ-000 | PIECE. OIL LOCK | 2 | |
| 15 | 51425-ACJ-000 | SEAL,DUST | 2 | |
| 16 | 91255-ACJ-000 | SEAL,OIL | 2 | |
| 17 | 90601-ACJ-000 | RING,OIL SEAL STOP | 2 | |
| 18 | 51420-ACJ-000 | CASE COMP R FRONT BOTTOM | 1 | |
| 19 | 51520-ACJ-000 | CASE COMP L FRONT BOTTOM | 1 | |
