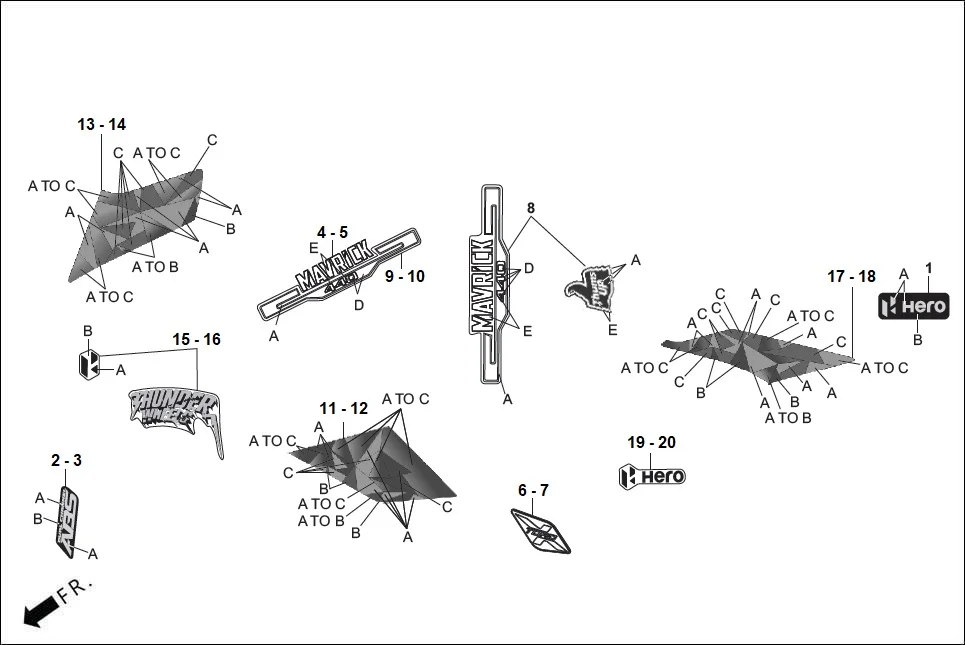

F-27 - STRIPE/ MARKS
Hero THUMBSUP THUNDERWHEEL(Apr.,2025) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 86238-ACJ-000 | MARK HERO REAR FENDER | 1 | |
| 2 | 86780-ACJ-000 | MARK ABS FORK ASSY R FR | 1 | |
| 3 | 86880-ACJ-000 | MARK ABS FORK ASSY L FR | 1 | |
| 4 | A4AFB4A002000G | EMBLEM TANK FUEL RH | 1 | |
| 5 | A4AFB4A001000G | EMBLEM TANK FUEL LH | 1 | |
| 6 | A4AFB4E005000G | EMBLEM COVER SIDE RH | 1 | |
| 7 | A4AFB4E004000G | EMBLEM COVER SIDE LH | 1 | |
| 8 | A4AFS6B0000AGG | STRIPE TANK FUEL TOP (TYPE-1) | 1 | |
| 9 | A4AFS6B0010AGG | STRIPE A FUEL TANK RH (TYPE-1) | 1 | |
| 10 | A4AFS6B0020AGG | STRIPE A FUEL TANK LH (TYPE-1) | 1 | |
| 11 | A4AFS6B0030AGG | STRIPE B FUEL TANK RH (TYPE-1) | 1 | |
| 12 | A4AFS6B0040AGG | STRIPE B FUEL TANK LH (TYPE-1) | 1 | |
| 13 | A4AFS6B0050AGG | STRIPE COWL FRONT RH (TYPE-1) | 1 | |
| 14 | A4AFS6B0060AGG | STRIPE COWL FRONT LH (TYPE-1) | 1 | |
| 15 | A4AFS6B0070AGG | STRIPE A SHROUD RH (TYPE-1) | 1 | |
| 16 | A4AFS6B0080AGG | STRIPE A SHROUD LH (TYPE-1) | 1 | |
| 17 | A4AFS6B0090AGG | STRIPE COWL REAR RH (TYPE-1) | 1 | |
| 18 | A4AFS6B0100AGG | STRIPE COWL REAR LH (TYPE-1) | 1 | |
| 19 | A4AFS6B0110AGG | MARK HERO RH (TYPE-1) | 1 | |
| 20 | A4AFS6B0120AGG | MARK HERO LH (TYPE-1) | 1 | |
