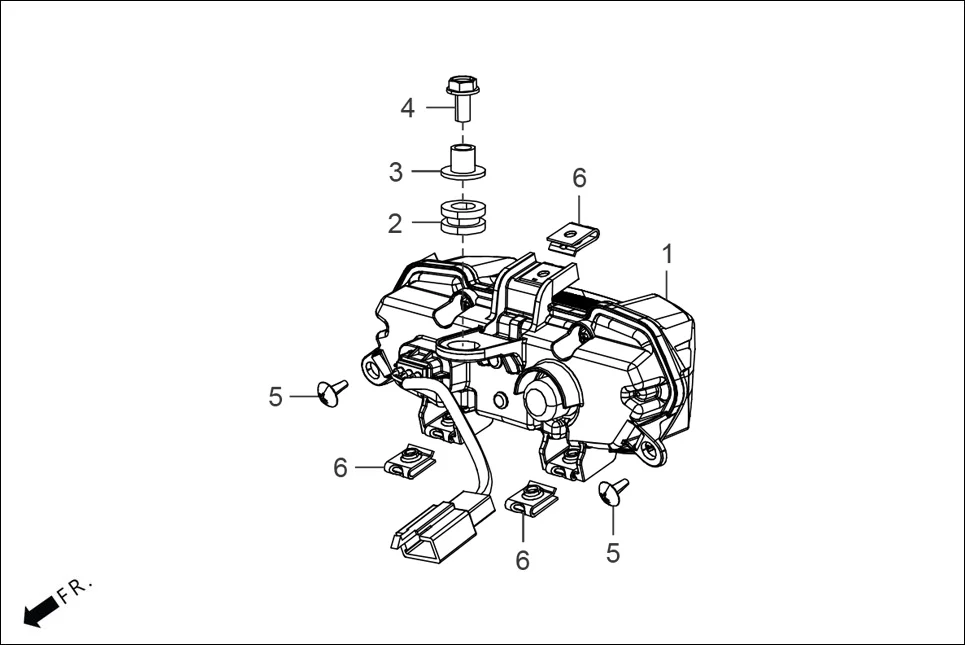

F-22-TAIL LIGHT
HeroTHUMBSUP THUNDERWHEEL(Apr.,2025) · 6 parts
Parts in This Assembly (6)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33700-ACJ-001 | UNIT TAIL LIGHT | 1 | |
| 2 | 80112-KVN-900 | RUBBER, RR FENDER | 1 | |
| 3 | 80111-KVN-900 | COLLAR, RR. FENDER | 1 | |
| 4 | 95701-06020-07 | BOLT, FLANGE, 6 X 20 | 1 | |
| 5 | 93903-25180 | SCREW, TAPPING, 5 X 10 | 2 | |
| 6 | 90320-GC3-000 | NUT, SPRING, M5 | 3 |
