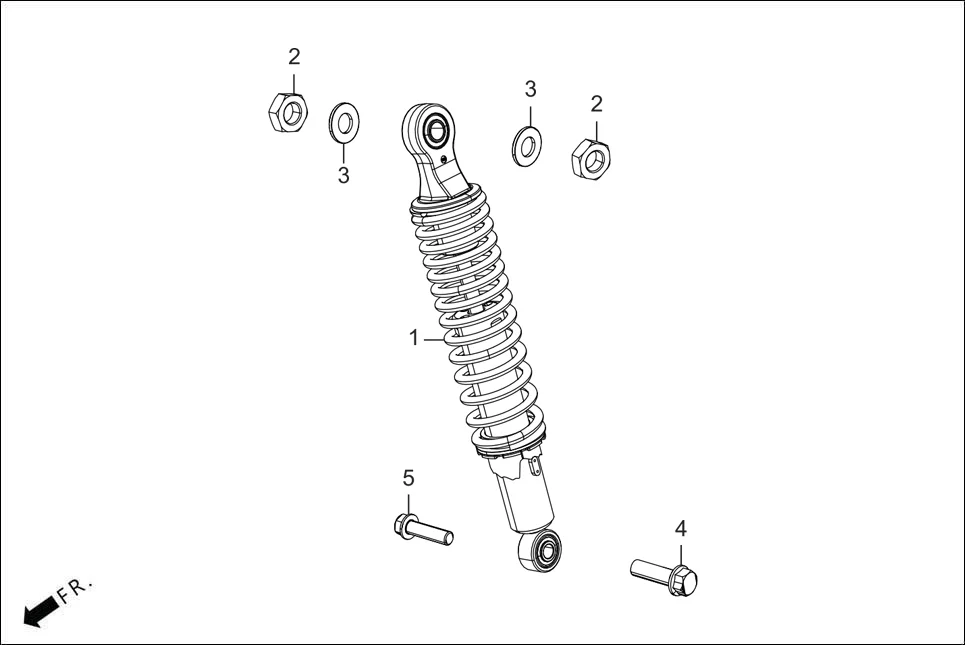

F-19 - REAR CUSHION
Hero THUMBSUP THUNDERWHEEL(Apr.,2025) · 5 parts
Parts in This Assembly (5)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-ACJ-000 | CUSHION ASSY REAR | 2 | |
| 2 | 94031-142W0 | NUT HEX 14MM | 2 | |
| 3 | 94101-14028-0W | WASHER PLAIN 14MM | 4 | |
| 4 | 95801-12040-2Y | BOLT FLANGE 12X40 | 1 | |
| 5 | 95801-12045-2Y | BOLT FLANGE 12X45 | 1 | |
