F-16 - PEDAL BRAKE

Hero THUMBSUP THUNDERWHEEL(Apr.,2025) · 1 parts

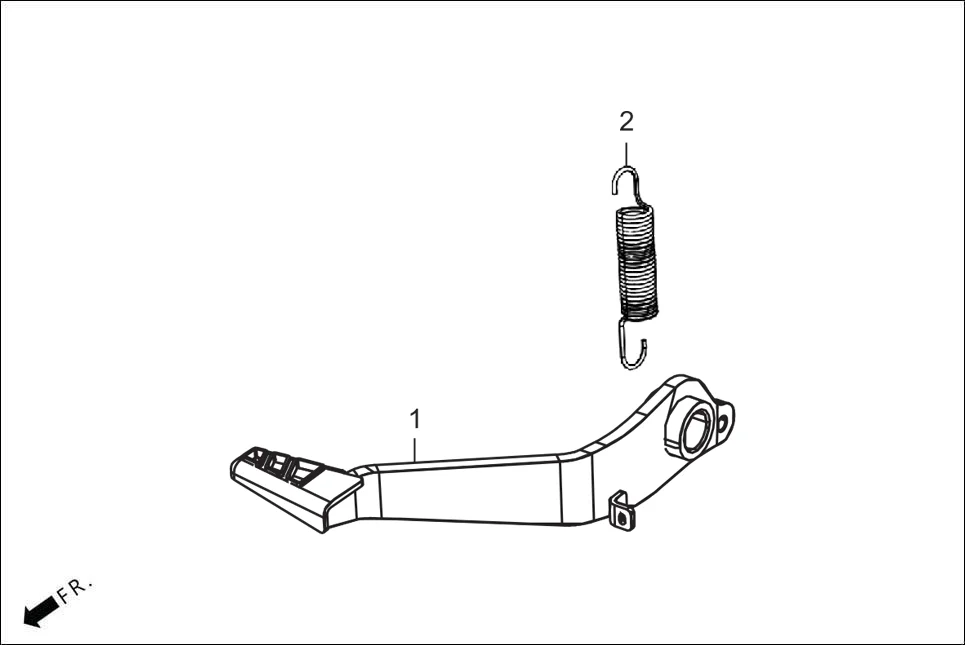

F-16 PEDAL BRAKE assembly diagram for Hero THUMBSUP THUNDERWHEEL(Apr.,2025)

Parts in This Assembly (1)

Ref # Part Number Description Qty
2 46518-ACD-000 SPRING BRAKE PEDAL 1
