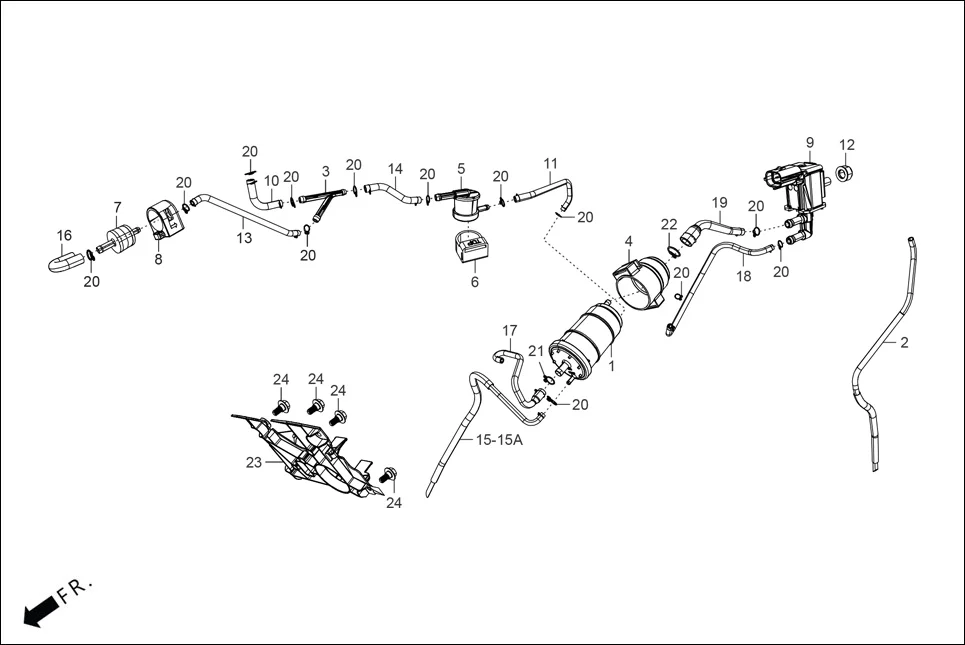

F-11A - FUEL TANK (CANISTER/TUBES)
Hero THUMBSUP THUNDERWHEEL(Apr.,2025) · 25 parts
Parts in This Assembly (25)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17410-AAM-001 | CANISTER COMP | 1 | |
| 2 | 17199-ACJ-000 | TUBE DRAIN | 1 | |
| 3 | 17230-AAH-100 | JOINT 3 WAY | 1 | |
| 4 | 17411-ACJ-000 | SUSP CANISTER | 1 | |
| 5 | 17420-AAE-100 | ROLL OVER VALVE | 1 | |
| 6 | 17421-ACJ-000 | SUSP. ROLL OVER VALVE | 1 | |
| 7 | 17430-AAE-100 | ONE WAY VALVE | 1 | |
| 8 | 17432-ACJ-000 | SUSP. ONE WAY VALVE | 1 | |
| 9 | 17554-ACD-001 | PURGE SOLENOID VALVE | 1 | |
| 10 | 1769A-ACJ-000 | TUBE A PIPE BREATHER SUB ASSY | 1 | |
| 11 | 1769B-ACJ-000 | TUBE A CANISTER SUB ASSY | 1 | |
| 12 | 94050-06000 | NUT, FLANGE, 6 MM | 1 | |
| 13 | 1769D-ACJ-000 | TUBE A J3W SUB ASSY | 1 | |
| 14 | 1769E-ACJ-000 | TUBE B J3W SUB ASSY | 1 | |
| 15 | 1769H-ACJ-000 | TUBE DRAIN CANISTER SUB ASSY | 1 | |
| 15 | 17699-ACJ-000 | TUBE DRAIN CANISTER | 1 | |
| 16 | 1769F-AAH-A00 | TUBE BREATHER OWV SUB ASSY. | 1 | |
| 17 | 1769G-ACJ-000 | TUBE BREATHER CANISTER SUB ASSY | 1 | |
| 18 | 1769M-ACJ-000 | TUBE PURGE B SUB ASSY | 1 | |
| 19 | 1769K-ACJ-000 | TUBE PURGE A SUB ASSY | 1 | |
| 20 | 95002-0208W | CLIP TUBE | 13 | |
| 21 | 95002-0213W | CLIP B12.5 TUBE | 1 | |
| 22 | 95002-7000W | CLIP C11 TUBE | 1 | |
| 23 | 17529-ACJ-000 | COWL CENTER AIRBOX | 1 | |
