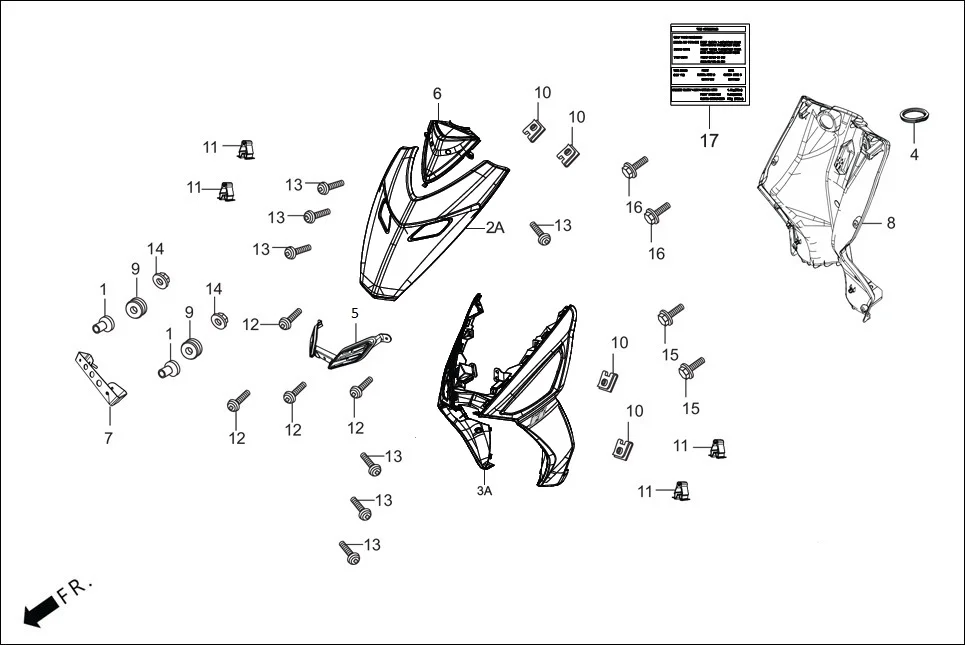

F-6A-LX - FR. & INNER COVER
Hero Maestro EDGE BSVI(Dec, 2021) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61104-428-000 | COLLAR, FR, FENDER | 2 | |
| 2 | 64301-AAW-000W | COV. FRONT CENTER A(TBM(BL002M) | 1 | |
| 2 | 64301-AAW-000V | COV. FRONT CENTER A(CBR(R195C) | 1 | |
| 2 | 64301-AAW-000R | COV. FRONT CENTER A(PSWM(WH004P) | 1 | |
| 3 | 64310-ACV-510T | SET, COVER FR. CENTER (TECHNO BLUE ME.) | 1 | |
| 3 | 64310-ACV-510U | SET, COVER FR. CENTER (CANDY BLAZING RED) | 1 | |
| 4 | 81133-AAW-500 | CAP CHOKE CABLE | 2 | |
| 5 | 64303-AAW-000 | FRONT GRILL | 1 | |
| 6 | 64308-AAW-000 | COV. FR CENTER (B) | 1 | |
| 7 | 64311-AAW-000 | STAY FR NO PLATE | 1 | |
| 8 | 81131-AAW-300 | COVER INNER | 1 | |
| 9 | 84703-425-000 | RUBBER TAIL LIGHT (MOUNT) | 2 | |
| 10 | 90344-AAW-000 | NUT CLIP 5MM | 4 | |
| 11 | 90666-AAB-000 | CLIP SNAP FIT | 4 | |
| 12 | 93903-25380 | SCREW TAPPING 5X16 | 4 | |
| 13 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 7 | |
| 14 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 15 | 93500-05010-1A | SCREW, PAN, 5X10 | 2 | |
| 16 | 90111-KPL-900 | BOLT, INNER COVER | 2 | |
| 17 | 87505-AAW-000 | LABEL TYRE | 2 | |
