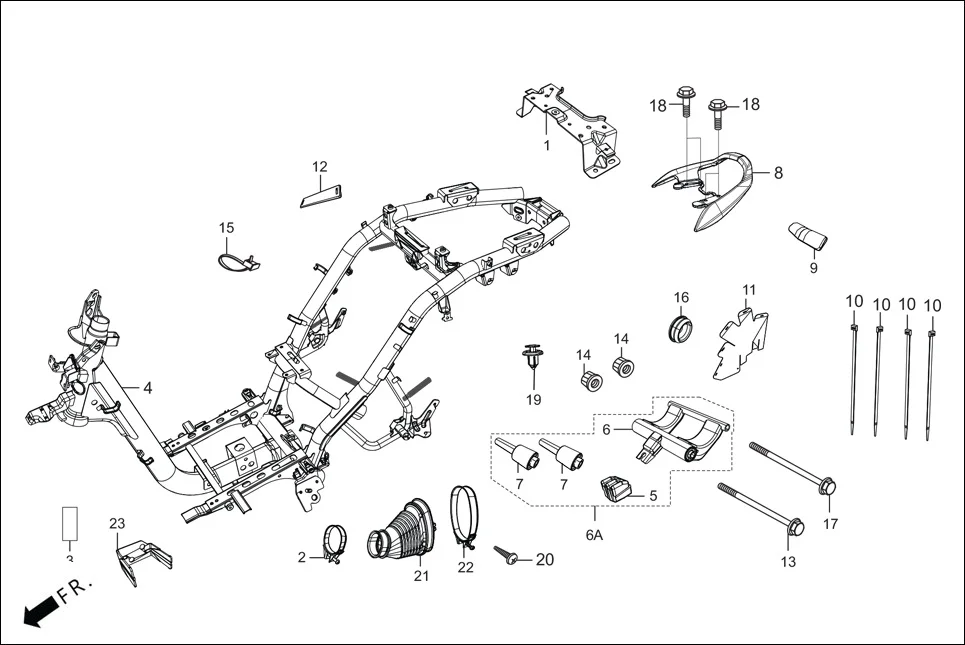

F-23-VX - FRAME BODY
Hero Maestro EDGE BSVI(Dec, 2021) · 27 parts
Parts in This Assembly (27)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 50263-AAW-500 | RR. GRIP BRACKET ASSY | 1 | |
| 2 | 11346-AAW-000 | BAND L COVER DUCT | 1 | |
| 3 | 90311-MT3-000 | NUT, CLIP, 6 MM | 6 | |
| 4 | 50100-ACV-500 | FRAME BODY COMP. | 1 | |
| 5 | 50352-AAW-B00 | RUBBER, LINK STOPPER | 1 | |
| 6 | 50355-AAW-B00 | LINK, SUB ASSY., ENG. HANGER | 1 | |
| 6 | 50350-AAW-B00 | LINK ASSY ENGINE HANGER | 1 | |
| 7 | 50353-AAW-000 | BUSH RUBBER ,ENG HANGER | 2 | |
| 8 | 77300-ACV-500R | GRIP RR (PEARL SILVER WHITE EX SPARKLE ME) | 1 | |
| 8 | 77300-ACV-500T | GRIP RR (PANTHER BLACK ME) | 1 | |
| 8 | 77300-ACV-500U | GRIP RR (CANDY BLAZING RED) | 1 | |
| 8 | 77300-ACV-500W | GRIP RR (TECHNO BLUE ME) | 1 | |
| 9 | 77310-AAW-000 | RUBBER PAD | 1 | |
| 10 | 90657-AAW-300 | CABLE TIE (LONG) | 4 | |
| 11 | 80102-AAW-300 | PLATE, FRAME, BODY SPLASH GUARD | 1 | |
| 12 | 81252-AAW-500 | COVER FRAME NO. | 1 | |
| 13 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 14 | 90304-KCS-920 | NUT`U 10 MM | 2 | |
| 15 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 16 | 90862-GCC-000 | PLUG, FRAME, END | 1 | |
| 17 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 18 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
| 19 | 90683-AAW-300 | CLIP TRIM. | 1 | |
| 20 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 21 | 11345-AAW-300 | DUCT L. COVER | 1 | |
| 22 | 11347-AAW-300 | BAND L COVER DUCT | 1 | |
| 23 | 17507-ACV-700 | STAY EVAPO VALVE | 1 | |
