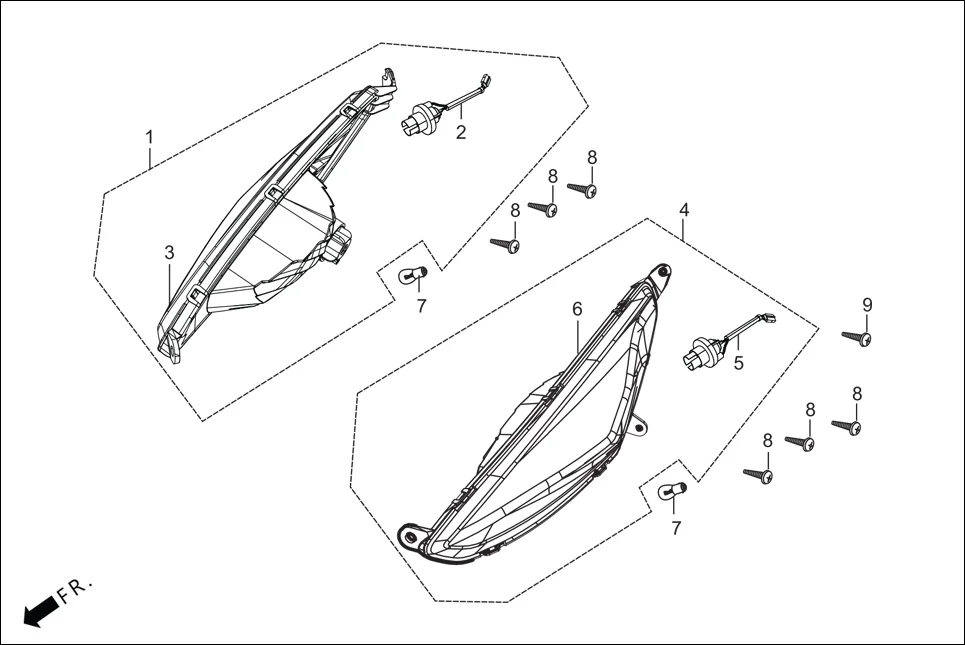

F-19 - FRONT WINKER
Hero Maestro EDGE BSVI(Dec, 2021) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 3340B-AAW-00099 | WINKER ASSY R FR(W/O BULB) | 1 | |
| 2 | 33405-AAW-001 | SOCKET COMP,R | 1 | |
| 3 | 33410-AAW-00099 | LENS COMP,R | 1 | |
| 4 | 3345B-AAW-00099 | WINKER ASSY L FR(W/O BULB) | 1 | |
| 5 | 33455-AAW-001 | SOCKET COMP,L | 1 | |
| 6 | 33460-AAW-00099 | LENS COMP,L | 1 | |
| 7 | 34930-AAC-700 | BULB(12V 10W) AMBER | 2 | |
| 8 | 93903-34410 | SCREW, TAPPING, 4 X 16. | 6 | |
| 9 | 93903-25880 | SCREW TAPPING 5X40 | 1 | |
