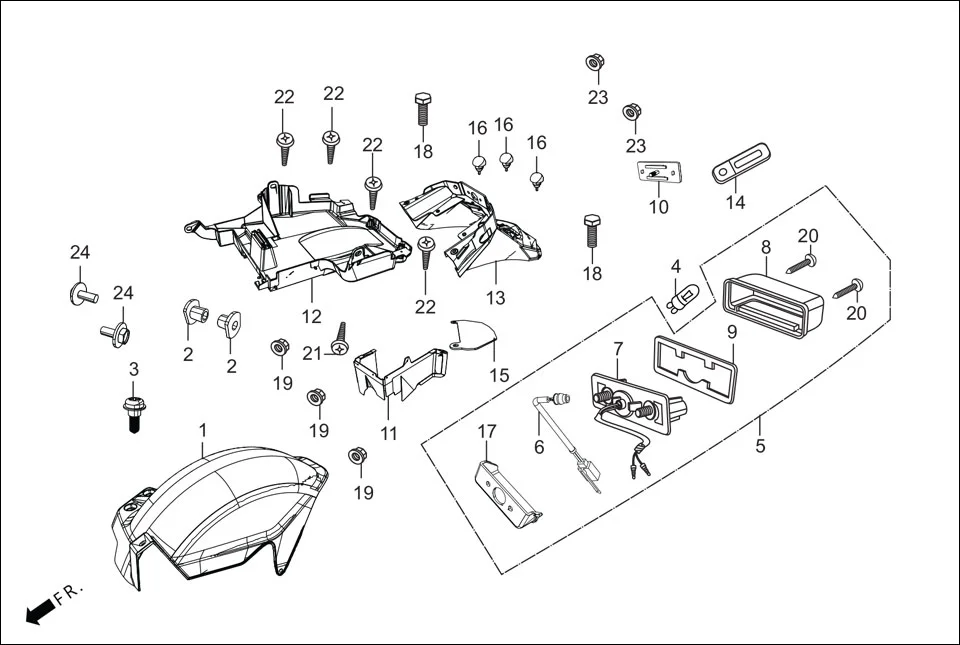

F-14 - REAR FENDER
Hero Maestro EDGE BSVI(Dec, 2021) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 40510-AAW-B00 | HUGGER REAR | 1 | |
| 2 | 90311-AAA-000 | NUT REAR FENDER | 2 | |
| 3 | 90103-AAW-B00 | SCREW PAN 5X15.5 | 2 | |
| 5 | 3372B-AAW-001 | LIGHT ASSY. LICENSE | 1 | |
| 6 | 33721-AAW-001 | SOCKET COMP. | 1 | |
| 7 | 33722-KVE-900 | BASE COMP. | 1 | |
| 8 | 33723-KVE-900H | COVER COMP. | 1 | |
| 9 | 33729-MCZ-003 | PACKING, LENS | 1 | |
| 10 | 33741-AAM-101 | REFLEX REFLECTOR | 1 | |
| 11 | 80104-AAW-B00 | PLATE RR FENDER SPLASH GUARD | 1 | |
| 12 | 80105-AAW-B00 | FENDER RR UPPER | 1 | |
| 13 | 80106-AAW-000 | FENDER RR LOWER | 1 | |
| 15 | 80132-AAW-000 | RUBBER PROTECTION RR. FENDER | 1 | |
| 16 | 80145-AAW-000 | RUBBER STOPPER | 3 | |
| 17 | 80203-AAW-000 | RUBBER LICENSE LIGHT | 1 | |
| 18 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 2 | |
| 20 | 93901-24480 | SCREW, TAPPING, 4 X 16 | 2 | |
| 21 | 93903-24016 | SCREW TAPPING 4X16 | 1 | |
| 22 | 93903-24480 | SCREW, TAPPING, 4X16 | 4 | |
| 23 | 94050-05000 | NUT FLANGE, 5 MM | 2 | |
