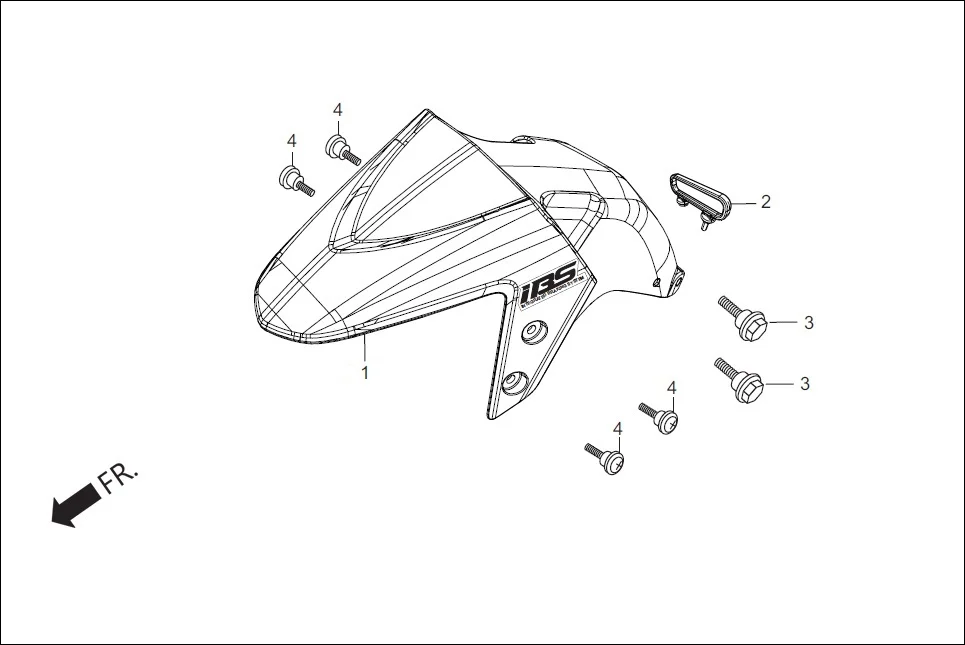

F-5-DRUM-FRONT FENDER
HeroMaestro EDGE 125 (May,2019) · 7 parts
Parts in This Assembly (7)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-ABG-200R | SET, FR FENDER (MATT MAPPLE BROWN RD (D)-002M (F) | 1 | |
| 1 | 61000-ABG-200S | SET, FR FENDER (MATT VERNIER GREY SG-013M) | 1 | |
| 1 | 61000-ABG-200T | SET, FR FENDER (MATT TECHNO BLUE BL (BR)-003M (F) | 1 | |
| 1 | 61000-ABG-200U | SET, FR FENDER (MATT CANDY BLAZING RED RD (BR)-001C (F) | 1 | |
| 2 | 45451-AAW-000 | GUIDE FR.FENDER CABLE | 1 | |
| 3 | 90111-187-000 | BOLT, FLANGE. 6 MM | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 |
