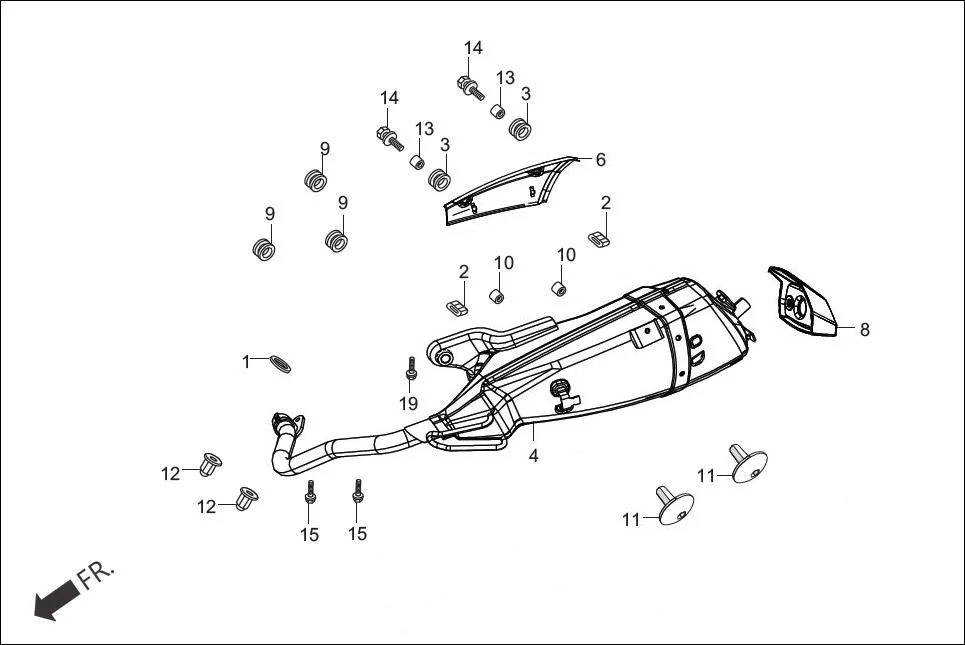

F-16-VX-EXHAUST MUFFLER
HeroMaestro EDGE (Sep, 2015) · 13 parts
Parts in This Assembly (13)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18292-GY1-610 | GASKET, EXH.PIPE | 1 | |
| 2 | 18293-AAW-000 | RUBBER PKG. PROTECTOR | 2 | |
| 3 | 18293-KTP-900 | RUBBER, PKG, PROTECTOR | 2 | |
| 4 | 18300-AAW-002 | MUFFLER COMP. EXH. | 1 | |
| 6 | 18318-AAW-000 | PROTECTOR MUFFLER | 1 | |
| 8 | 18340-AAW-000 | COV. TAIL CAP | 1 | |
| 9 | 18345-AAW-000 | RUBBER, PROTECTOR MOUNT | 3 | |
| 10 | 33619-459-840A | COLLAR,WINKER STAY | 2 | |
| 11 | 90102-AAW-000 | BOLT. SPECIAL 6X20 | 2 | |
| 12 | 90308-KPL-840 | NUT, CAP, 6 MM | 2 | |
| 13 | 90312-AAW-000 | COLLAR M6X11 | 2 | |
| 14 | 93404-06016-07 | BOLT-WASHER, 6 X 16 | 2 | |
| 15 | 95801-10045-08 | BOLT, FLANGE, 10X45 | 2 |
