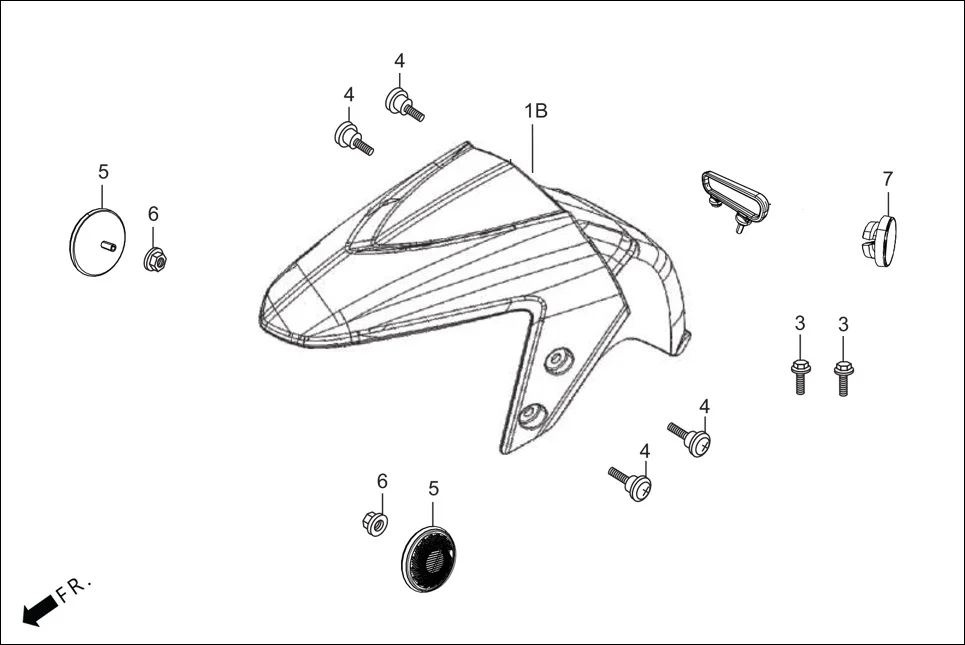

F-5-CONNECT - FRONT FENDER
Hero MAESTRO EDGE 125CC(March,2023) · 8 parts
Parts in This Assembly (8)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 61000-ABH-510T | SET, FR FENDER (PRISM GREY) | 1 | |
| 1 | 61000-ABH-510V | SET, FR FENDER (JUBILANT YELLOW) | 1 | |
| 3 | 90111-06017-07 | BOLT FLANGE 6MM | 2 | |
| 4 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 4 | |
| 5 | 33741-AAG-B01 | REFLEX REFLECTOR | 2 | |
| 5 | 33741-AAN-601 | REFLEX REFLECTOR FRONT | 2 | |
| 6 | 90302-KTE-911 | NUT FLANGE PT 6MM | 2 | |
| 7 | 61324-ABH-500 | PLUG FR. FENDER | 2 | |
