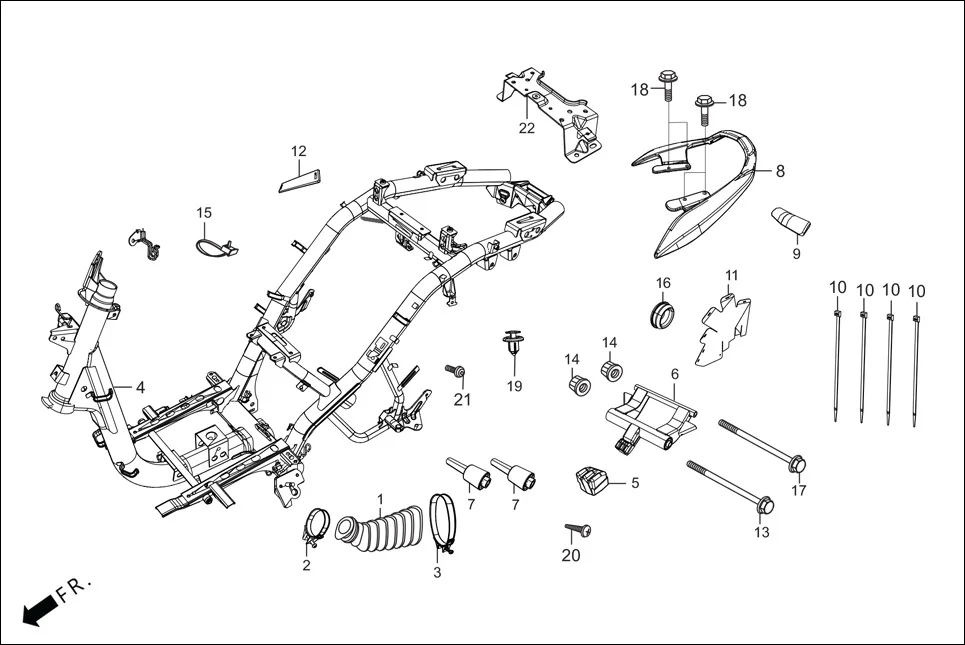

F-23-DRUM-FRAME BODY
HeroMAESTRO EDGE 125CC(March,2023) · 24 parts
Parts in This Assembly (24)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11345-AAW-300 | DUCT L. COVER | 1 | |
| 2 | 11346-AAW-000 | BAND L COVER DUCT | 1 | |
| 3 | 11347-AAW-300 | BAND L COVER DUCT | 1 | |
| 4 | 50100-ABH-200 | FRAME BODY COMP | 1 | |
| 5 | 50352-AAW-B00 | RUBBER, LINK STOPPER | 1 | |
| 6 | 50355-AAW-B00 | LINK, SUB ASSY., ENG. HANGER | 1 | |
| 7 | 50353-AAW-000 | BUSH RUBBER ,ENG HANGER | 2 | |
| 8 | 77300-AAW-000R | GRIP RR(PSWM(WH004P) | 1 | |
| 8 | 77300-AAW-000T | GRIP RR(PNB(NHB08M) | 1 | |
| 8 | 77300-AAW-000V | GRIP RR(CBR(R195C) | 1 | |
| 9 | 77310-AAW-000 | RUBBER PAD | 1 | |
| 10 | 90657-AAW-300 | CABLE TIE (LONG) | 2 | |
| 11 | 80102-AAW-300 | PLATE, FRAME, BODY SPLASH GUARD | 1 | |
| 12 | 81252-AAW-500 | COVER FRAME NO. | 1 | |
| 13 | 90106-GCC-000 | BOLT, FLANGE 10X238 | 1 | |
| 14 | 90304-KCS-920 | NUT`U 10 MM | 2 | |
| 15 | 90672-KPL-901 | BODY, CLIP | 1 | |
| 16 | 90862-GCC-000 | PLUG, FRAME, END | 1 | |
| 17 | 90105-KJ9-000 | BOLT, FLANGE 10X210 | 1 | |
| 18 | 95701-08020-00 | BOLT, FLANGE, 8X20 | 4 | |
| 19 | 90683-AAW-300 | CLIP TRIM. | 1 | |
| 20 | 93500-04032-0G | SCREW, PAN, 4 X 32 | 1 | |
| 21 | 90101-087-720 | SCREW, HEAD LIGHT SET | 1 | |
| 22 | 50263-AAW-500 | RR. GRIP BRACKET ASSY | 1 |
