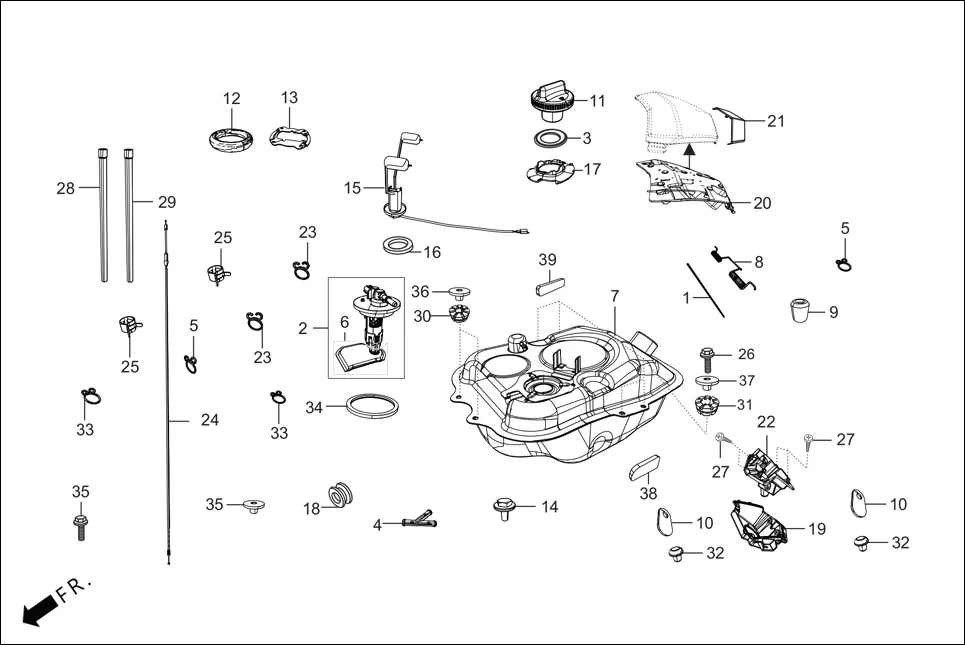

F-13-FUEL TANK
HeroMAESTRO EDGE 125CC(March,2023) · 40 parts
Parts in This Assembly (40)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 15543-AAW-000 | FUEL LID AXLE | 1 | |
| 2 | 16700-AAL-901 | UNIT ASSY FUEL PUMP | 1 | |
| 3 | 17029-ABH-A00 | FILLER NECK GASKET | 1 | |
| 4 | 17320-AAW-000 | JOINT 3 WAY | 1 | |
| 5 | 95002-02080 | CLIP, TUBE | 2 | |
| 6 | 16701-AAL-901 | FUEL PUMP FILTER | 1 | |
| 7 | 17500-AAW-B00 | TANK COMP FUEL | 1 | |
| 8 | 17544-AAW-000 | FUEL LID SPRING | 1 | |
| 9 | 17545-AAW-000 | FUEL LID STUD STOPPER | 1 | |
| 10 | 17546-AAW-000 | FUEL LID AXLE STOPPER | 2 | |
| 11 | 17620-ABH-A00 | CAP COMP. FUEL FILLER | 1 | |
| 12 | 16702-AAL-901 | FUEL PUMP O-RING | 1 | |
| 13 | 17507-AAW-500 | PLATE SETTING | 1 | |
| 14 | 90022-GFP-900 | BOLT WASHER 6×16 | 1 | |
| 15 | 37800-AAW-501 | UNIT ASSY. FUEL | 1 | |
| 15 | 37800-AAW-B01 | UNIT ASSY. FUEL | 1 | |
| 16 | 37801-ABH-A00 | PACKING BASE | 1 | |
| 17 | 37802-GA7-700 | RETAINER FUEL UNIT | 1 | |
| 18 | 77202-AAW-000 | RUBBER TRAY FUEL COVER | 1 | |
| 19 | 80153-AAW-000 | TRAY FUEL | 1 | |
| 20 | 80156-AAW-000 | COVER FUEL TANK SUB ASSY. | 1 | |
| 21 | 80155-ABG-201 | EMBLEM COVER FUEL TANK | 1 | |
| 22 | 80159-AAW-000 | COVER, TRAY FUEL | 1 | |
| 23 | 95002-02070 | CLIP, B-7 TUBE | 2 | |
| 24 | 77244-AAW-000 | FUEL LID COVER CATCH CABLE FR | 1 | |
| 25 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 2 | |
| 26 | 95701-08025-00 | BOLT, FLANGE 8 X 25 | 4 | |
| 27 | 93903-24380 | SCREW TAPPING, 4 X 12 | 4 | |
| 28 | 95003-23027-60 | V TUBE 8X12X270 | 1 | |
| 29 | 95003-23033-60 | V. TUBE 8 X 12 X 330 | 1 | |
| 30 | 17611-AAW-500 | CUSHION FRONT FUEL TANK | 2 | |
| 31 | 17613-AAW-500 | CUSHION REAR FUEL TANK | 4 | |
| 32 | 80158-AAW-000 | RUBBER BUSH TRAY FUEL | 2 | |
| 33 | 95002-02100 | CLIP, B-10 TUBE | 2 | |
| 34 | 17572-AAL-C00 | GASKET FUEL PUMP | 1 | |
| 35 | 83518-AAW-B00 | COLLAR, CANISTER STAY | 1 | |
| 36 | 80101-AAW-500 | COLLAR FRONT FUEL TANK | 2 | |
| 37 | 80102-AAW-500 | COLLAR REAR FUEL TANK | 4 | |
| 38 | 83406-AAW-500 | CUSHION, TANK LH SIDE | 1 | |
| 39 | 83407-AAW-500 | CUSHION, TANK RH SIDE | 1 |
