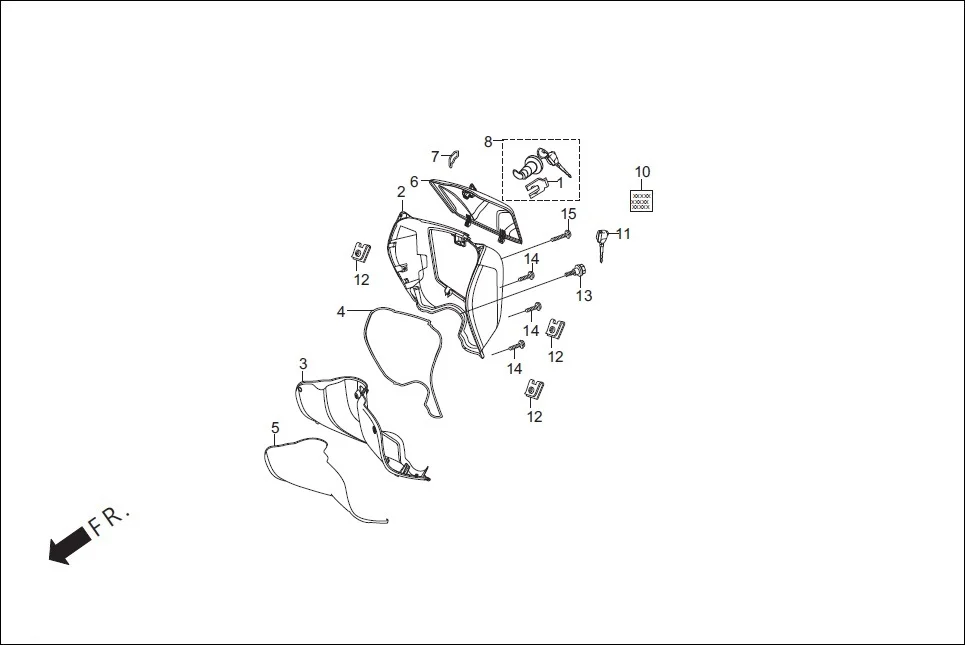

FOP-2-DLX - FR. INNER BOX (OPTIONAL)
Hero Maestro (Oct, 2014) · 14 parts
Parts in This Assembly (14)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 75581-KPL-900 | SET SPG LOCK KEY | 1 | |
| 2 | 81134-KZN-900 | OUTER INNER BOX | 1 | |
| 3 | 81135-KZN-900 | INNER INNER BOX | 1 | |
| 4 | 81137-KWP-900 | SEAL INNER BOX | 1 | |
| 5 | 81138-KZN-900 | SEAL OUTER INNER | 1 | |
| 6 | 81141-KZN-900 | LID INNER BOX | 1 | |
| 7 | 81143-AAW-300 | PIN LID INNER BOX | 1 | |
| 8 | 81145-KZN-900 | KEY SET INNER BOX | 1 | |
| 10 | 87505-KZN-910 | LABEL, TYRE | 1 | |
| 11 | 35117-KZN-900A | KEY BLANK-1 | 1 | |
| 12 | 90344-KRP-900 | NUT CLIP 5MM | 3 | |
| 13 | 92101-06030-0H | BOLT HEX 6X30 | 1 | |
| 14 | 93903-25280 | SCREW, TAPPING 5X12 | 3 | |
| 15 | 93903-25380 | SCREW TAPPING 5X16 | 6 | |
