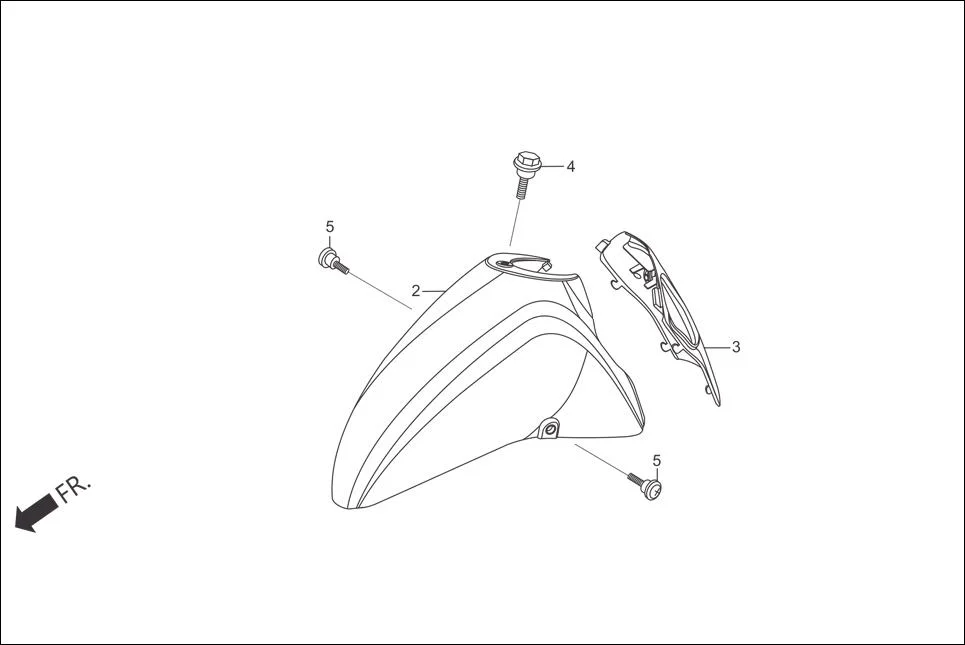

F-5-STD-FRONT FENDER
HeroMaestro (Oct, 2014) · 9 parts
Parts in This Assembly (9)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 2 | 61100-KZN-900ZA | FENDER A FR (PEARL FADELESS WHITE) | 1 | |
| 2 | 61100-KZN-900ZB | FENDER A FR (FORCE SILVER ME) | 1 | |
| 2 | 61100-KZN-900ZC | FENDER A FR (PANTHER BLACK ME) | 1 | |
| 2 | 61100-KZN-900ZE | FENDER A FR (CANDY BLAZING RED) | 1 | |
| 2 | 61100-KZN-900ZF | FENDER A FR (MAESTRO BLUE ME) | 1 | |
| 2 | 61000-ABL-010X | SET, FR FENDER(MGM,NH-303M) | 1 | |
| 3 | 61110-KZN-900 | FENDER, B, FR. | 1 | |
| 4 | 90111-187-000 | BOLT, FLANGE. 6 MM | 1 | |
| 5 | 90381-KWA-940 | SCREW SPECIAL 6×13 | 2 |
