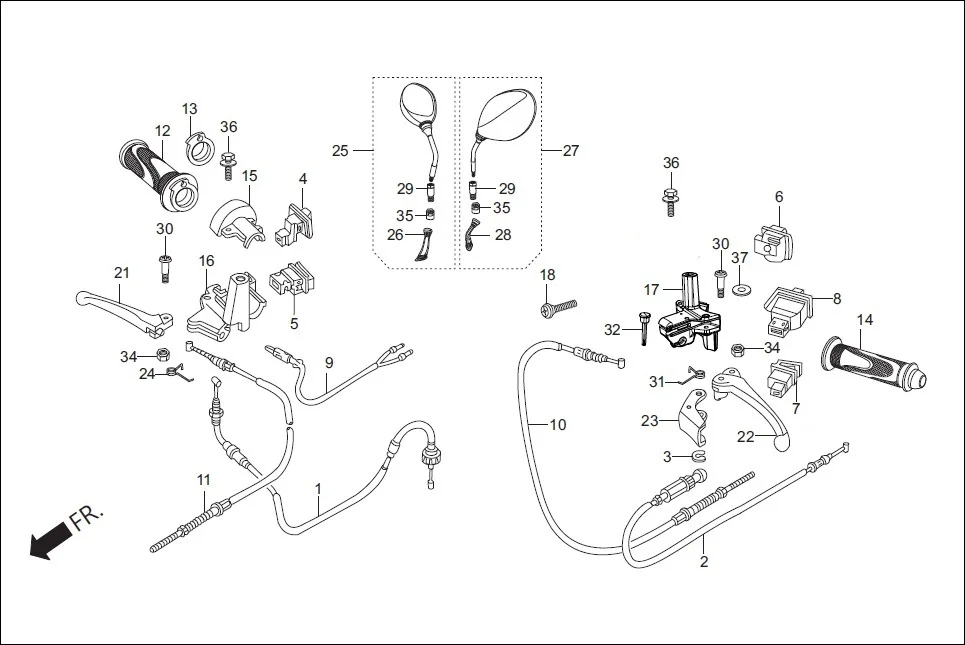

F-3-STD - HANDLE LEVER / SWITCH / CABLE
Hero Maestro (Oct, 2014) · 44 parts
Parts in This Assembly (44)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17920-KZN-305 | CABLE SET, THROTTLE | 1 | |
| 2 | 17950-KWP-900 | CABLE COMP., CHOKE | 1 | |
| 3 | 30158-GW3-980 | RING E TYPE 3MM | 1 | |
| 4 | 35150-AAL-001 | SW UNIT LIGHTNING | 1 | |
| 5 | 35160-KWP-901 | SWITCH, UNIT START | 1 | |
| 6 | 35170-KPL-842 | SWITCH, UNIT DIMMER | 1 | |
| 7 | 35180-KWP-901 | SWITCH, UNIT HORN | 1 | |
| 8 | 35200-KVT-911 | SWITCH, UNIT WINKER | 1 | |
| 9 | 35340-KWP-900 | SWITCH ASSY., FR. STOP | 1 | |
| 10 | 43450-KZN-900 | CABLE COMP., RR. BRK. | 1 | |
| 11 | 45450-KZN-900 | CABLE COMP FR BRK | 1 | |
| 12 | 53140-KZN-900 | GRIP COMP., THROT. | 1 | |
| 13 | 53141-KRP-N40 | PIPE THROT GRIP | 1 | |
| 14 | 53166-KZN-900 | GRIP, L. HANDLE | 1 | |
| 15 | 53167-KPL-900 | HOUSING , UPP., THROT | 1 | |
| 16 | 53168-KWP-900 | HOUSING, UND., THROT. | 1 | |
| 17 | 53172-KWP-900 | BRKT., HANDLE | 1 | |
| 18 | 93500-05012-0A | SCREW PAN, 5 X 12 | 1 | |
| 21 | 53175-KTP-900 | LEVER, R. STRG. HANDLE | 1 | |
| 22 | 53178-KWP-900 | LEVER, L. HANDLE | 1 | |
| 23 | 53182-KWP-940 | LEVER COMP PARKING | 1 | |
| 24 | 53199-KZN-910 | SPG R LEVER RETURN | 1 | |
| 25 | 88110-KZN-900ZA | MIRROR ASSY R BACK(PFW NH-341P) | 1 | |
| 25 | 88110-KZN-900ZB | MIRROR ASSY R BACK(FSM, NH-411M) | 1 | |
| 25 | 88110-KZN-900ZC | MIRROR ASSY R BACK(PBM, NH-B08M) | 1 | |
| 25 | 88110-KZN-900ZE | MIRROR ASSY R BACK(CBR, R-195C) | 1 | |
| 25 | 88110-KZN-900ZF | MIRROR ASSY R BACK(MBM, B-215M) | 1 | |
| 25 | 88110-ABL-000X | MIRROR ASSY R BACK(MGM,NH-303M) | 1 | |
| 26 | 88115-KZN-901 | BOOT R MIRROR | 1 | |
| 27 | 88120-KZN-900ZA | MIRROR ASSY L BACK(PFW, NH-341P) | 1 | |
| 27 | 88120-KZN-900ZB | MIRROR ASSY L BACK(FSM, NH-411M) | 1 | |
| 27 | 88120-KZN-900ZC | MIRROR ASSY L BACK(PBM, NH-B08M) | 1 | |
| 27 | 88120-KZN-900ZE | MIRROR ASSY L BACK(CBR, R-195C) | 1 | |
| 27 | 88120-KZN-900ZF | MIRROR ASSY L BACK(MBM, B-215M) | 1 | |
| 27 | 88120-ABL-000X | MIRROR ASSY L BACK(MGM,NH-303M) | 1 | |
| 28 | 88215-KZN-901 | BOOT L. MIRROR | 1 | |
| 29 | 90102-KWP-900 | BOLT ADPT 8MM | 2 | |
| 30 | 90115-KPL-900 | SCREW, HNDL LEVER PIVOT | 2 | |
| 31 | 53182-GW3-980 | SPRING, RETURN LEVER | 1 | |
| 32 | 53183-GW3-980 | PIN, PIVOT, PARKING LEVER | 1 | |
| 34 | 90304-KPL-900 | NUT HEX 5 MM | 2 | |
| 35 | 90310-KPL-900 | LOCK NUT MIRROR R | 2 | |
| 36 | 93401-06020-00 | BOLT, WASHER, 6 X 20 | 2 | |
| 37 | 94103-05800 | WASHER,PLAIN, 5.5MM | 1 | |
