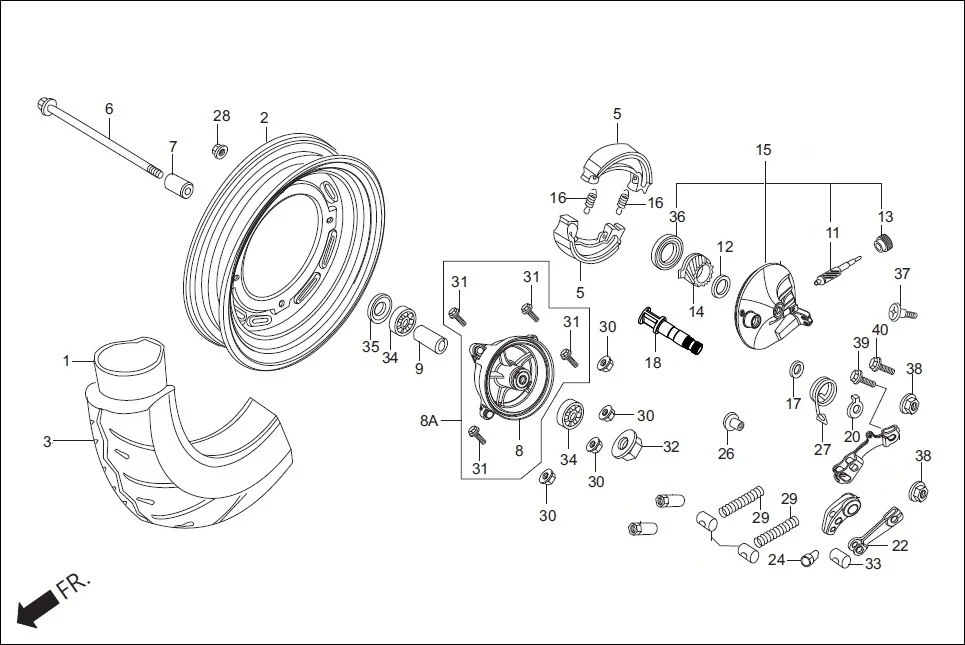

F-10-STD - FRONT WHEEL
Hero Maestro (Oct, 2014) · 34 parts
Parts in This Assembly (34)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 06427-KTP-900 | TUBE, SET (3.5-10) | 1 | |
| 2 | 42702-KWP-900 | RIM COMP WHEEL | 1 | |
| 3 | 42711-KRB-904 | TIRE MRF | 1 | |
| 5 | 45125-AAH-F0099 | SHOE COMP BRAKE | 2 | |
| 6 | 44301-KPL-900 | AXLE, FRONT WHEEL | 1 | |
| 7 | 44311-KPL-900 | COLLAR, FR. WHEEL SIDE | 1 | |
| 8 | 44610-KWP-900 | HUB SUB ASSY. FRONT | 1 | |
| 9 | 44620-KPL-900 | COLLAR FR WHEEL DISTANCE | 1 | |
| 11 | 44805-KTP-900 | PINION, SPDMT | 1 | |
| 12 | 44809-170-000 | WASHER, SPEEDOMETER GEAR | 1 | |
| 13 | 44810-KTC-900 | BUSH, PINION | 1 | |
| 14 | 44811-KPL-900 | GEAR, SPDMT | 1 | |
| 15 | 45010-KTP-901 | PANEL SUB.COMP.FR.BRAKE | 1 | |
| 16 | 45133-KCC-900 | SPRING, FR. BRAKE SHOE | 2 | |
| 17 | 45134-250-000 | DUST SEAL, BRAKE CAM | 1 | |
| 18 | 45141-KTP-900 | CAM, FRONT BRAKE | 1 | |
| 20 | 45145-KPL-900 | INDICATOR, FRONT BRAKE | 1 | |
| 22 | 45410-KPL-900 | ARM, FRONT BRAKE | 1 | |
| 24 | 95015-42000 | NUT B ADJUST | 1 | |
| 26 | 45416-KWP-910 | COLLAR BRK ARM COVER | 1 | |
| 27 | 45435-GB2-720 | SPRING, BRAKE ARM RETURN | 1 | |
| 29 | 45456-KWP-910 | SPRING BRK CABLE END | 2 | |
| 30 | 90304-KST-942 | NUT FLG.PT 10MM | 4 | |
| 31 | 90103-KWP-900 | BOLT WHEEL 10X32 | 4 | |
| 32 | 90306-KST-942 | NUT, CASTLE, 12 MM | 1 | |
| 32 | 90306-KTE-911 | NUT, CASTLE, 12 MM | 1 | |
| 33 | 95015-32001 | JOINT B BRAKE ARM | 1 | |
| 34 | 90912-KPL-900 | BEARING BALL RADIAL 6201(U) | 2 | |
| 35 | 91251-KWP-901 | SEAL DUST 20X32X5 | 1 | |
| 36 | 91253-KPL-900 | DUST SEAL , 41 X60 X7 | 1 | |
| 37 | 93500-05010-1G | SCREW PAN 5 X 10 | 1 | |
| 38 | 94050-06000 | NUT, FLANGE, 6 MM | 2 | |
| 39 | 95701-06032-00 | BOLT, FLANGE, 6 X 32 | 1 | |
| 40 | 95701-06035-00 | BOLT, FLANGE, 6X35 | 1 | |
