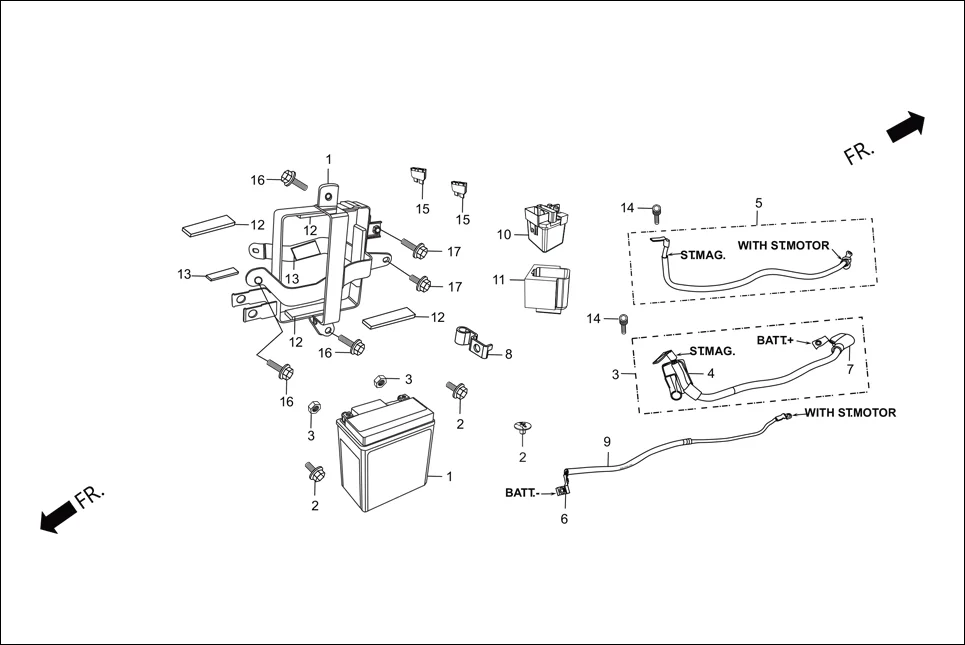

F-24A-CASE COMP., BATTERY/MAG. TERMINAL
HeroKarizma ZMR (Apr, 2018) · 20 parts
Parts in This Assembly (20)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17232-KRY-970 | CASE COMP BATTERY | 1 | |
| 2 | 90105-AAB-100 | BOLT SPECIAL 6X8 | 1 | |
| 3 | 32401-AAR-001 | CABLE ST-MAG BATT | 1 | |
| 4 | 32406-MT3-610 | COVER, ST. MAG TERMINAL A | 1 | |
| 5 | 32410-KRY-970 | CABLE START MOTOR | 1 | |
| 6 | 32413-KRY-970 | TERMINAL, BAT CABLE | 1 | |
| 7 | 32414-MW0-000 | COVER, BATTERY TERMINAL | 1 | |
| 8 | 32418-KRY-970 | TERMINAL, BAT | 1 | |
| 9 | 32601-KRY-971 | CABLE BAT. EARTH | 1 | |
| 10 | 35850-KR3-870 | SWITCH ASSY., START MAG. | 1 | |
| 11 | 35856-KBG-007 | RUBBER,SHOCK | 1 | |
| 12 | 50383-KRC-900 | RUBBER , BATTERY | 4 | |
| 13 | 83407-KCC-902 | CUSHION, FR. VISOR | 2 | |
| 14 | 90111-MR5-000 | BOLT, SOCKET, 5X9 | 2 | |
| 15 | 98200-32000 | BLADE, FUSE, 20A | 2 | |
| 16 | 95701-06012-00 | BOLT, FLANGE, 6X12 | 3 | |
| 17 | 95701-06008-00 | BOLT, FLANGE, 6X8 | 2 | |
| 18 | 31500-KRY-801 | BATTERY ASSY MF7 | 1 | |
| 19 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 20 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 |
