HERO OEM Part

77244-AAR-000S

SET, L TAIL SEC BWK(PFW,NH-341P)

Qty Required: 1 Ref #15 in Assembly

Part of Assembly

F-12
SEAT ASSY. / COWL REAR
23 parts in this assembly

Assembly Diagram

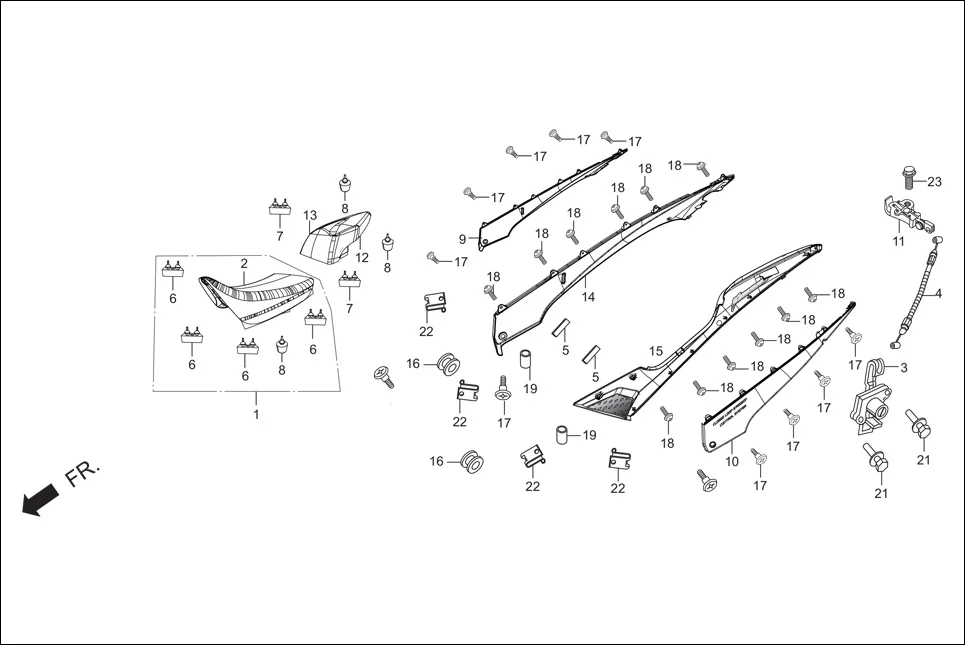

F-12 SEAT ASSY. / COWL REAR diagram showing 77244-AAR-000S
Ref #15

Supported Vehicles2

HHERO Karizma ZMR (May, 2014)
HERO Karizma ZMR (May, 2014)
Current
HHERO Karizma ZMR (Apr, 2018)
HERO Karizma ZMR (Apr, 2018)

Related Parts

77100-AAR-000
SEAT PAN RIDER
7710A-AAR-000
COVER,SEAT PAN RIDER
77110-ML7-922
LOCK ASSY., SEAT
77156-AAR-000
CABLE ASSY SEAT LATCH
17506-AAR-000
BODY FILM PROTECTOR
77204-AAR-000
CUSHION RUBBER RIDER SEAT
View all 23 parts in this assembly
