HERO

OEM Part

HERO

OEM Part

91257-230-003

OIL SEAL 28X42X7

Qty Required: 2 Ref #11 in Assembly

Part of Assembly

17 parts in this assembly

Assembly Diagram

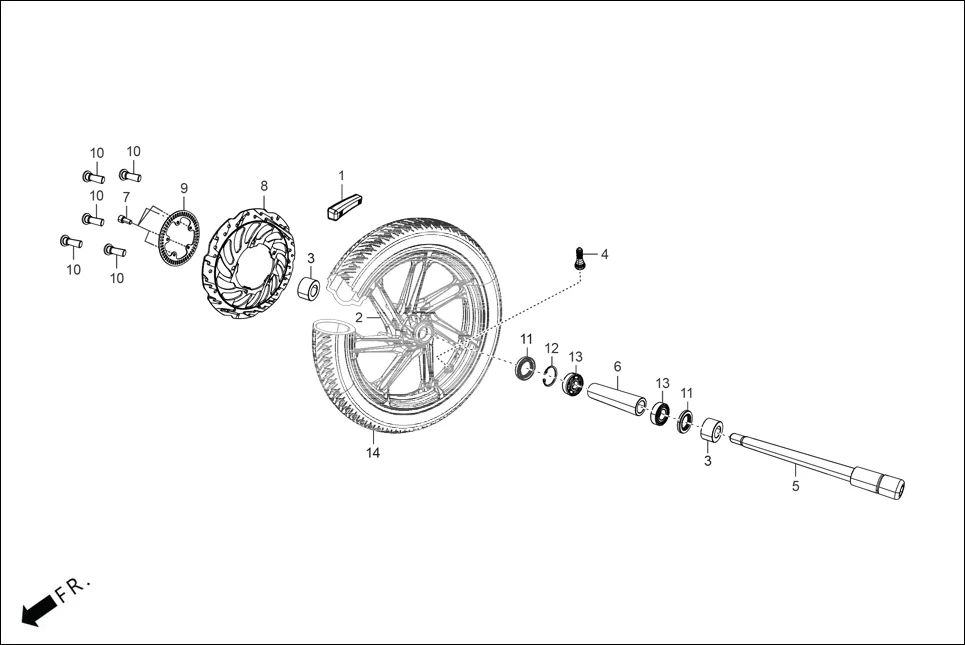

F-9 FRONT WHEEL diagram showing 91257-230-003

Ref #11

Supported Vehicles61

HERO THE CENTENNIAL(OCT.,2024)

HERO THE CENTENNIAL(OCT.,2024)

HERO KARIZMA FIGHTER EDITION(MAY, 2025)

HERO KARIZMA FIGHTER EDITION(MAY, 2025)

HERO KARIZMA XMR (Sept. 2023)

HERO KARIZMA XMR (Sept. 2023)

HERO Karizma ZMR (May, 2014)

HERO Karizma ZMR (May, 2014)

HERO Karizma ZMR (Apr, 2018)

HERO Karizma ZMR (Apr, 2018)

HERO XMR OBD2 PHASE B BASE(APR.,2025)

HERO XMR OBD2 PHASE B BASE(APR.,2025)

HERO XMR TFT SPEEDO(APR.,2025)

HERO XMR TFT SPEEDO(APR.,2025)

HERO XPULSE 200 4V(NOV.,2024)

HERO XPULSE 200 4V(NOV.,2024)

Related Parts

WEIGHT BALANCE 5

WEIGHT BALANCE 10

WEIGHT BALANCE 15

WEIGHT BALANCE 20

WHEEL COMP FRONT

View all 17 parts in this assembly
