F-1C-WATER PUMP

HeroTHE CENTENNIAL(OCT.,2024) · 3 parts

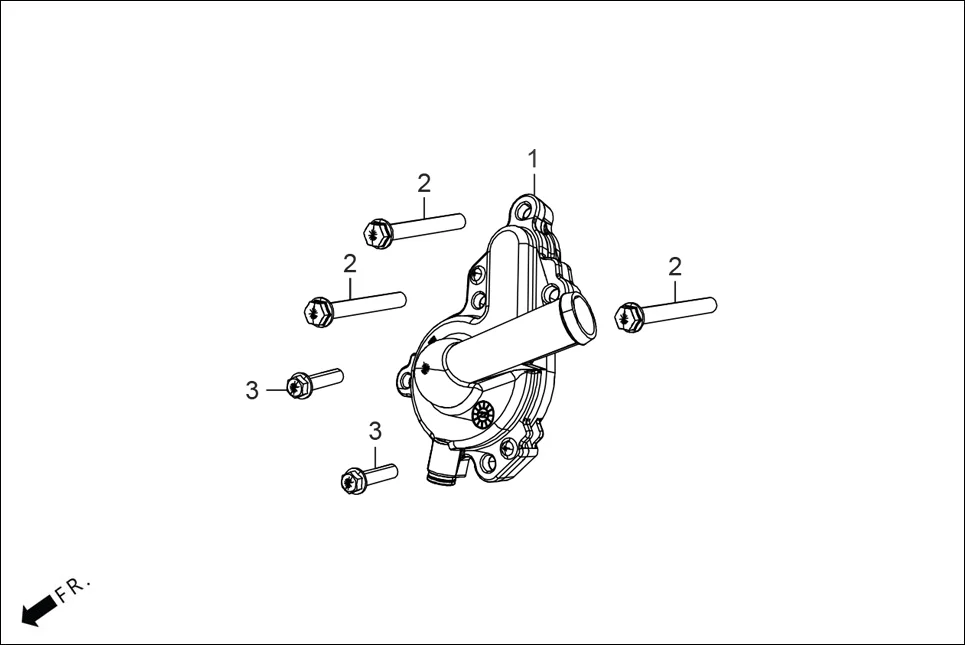

F-1C WATER PUMP assembly diagram for Hero THE CENTENNIAL(OCT.,2024)

Parts in This Assembly (3)

Ref #Part NumberDescriptionQty
1ACYAE1K000000GWATER PUMP ASSY1
296001-06055-00BOLT FLANGE SH 6X553
396001-06025-07BOLT, FLANGE, SH. 6 X 252
