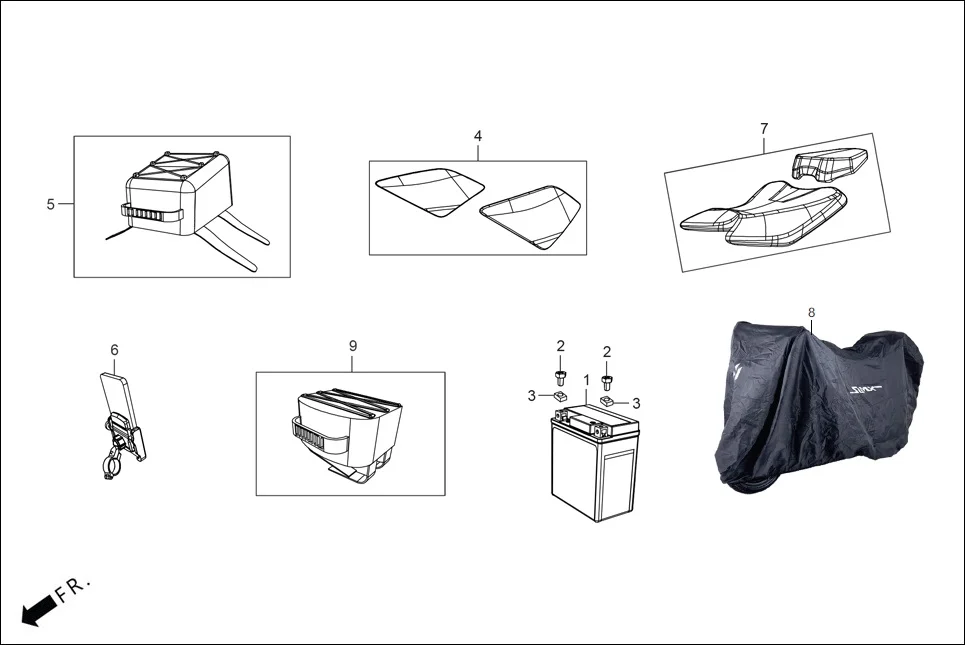

F-29-(OPTIONAL)
HeroTHE CENTENNIAL(OCT.,2024) · 11 parts
Parts in This Assembly (11)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 31500-KRY-801 | BATTERY ASSY MF7 | 1 | |
| 2 | 90122-KVT-941 | BOLT BATTERY TERMINAL | 2 | |
| 3 | 90306-KVT-941 | NUT BATTERY TERMINAL | 2 | |
| 4 | 1754B-ACA-000 | PAD FUEL TANK KIT | 1 | |
| 5 | 99655-ACA-000 | TANK BAG MAGNETIC | 1 | |
| 6 | 9945ABWL00S | PREMIUM MOBILE HOLDER | 1 | |
| 7 | 99630-ACA-000 | COVER ASSY SEAT | 1 | |
| 7 | 99631-ACA-000 | COVER ASSY SEAT | 1 | |
| 7 | 99632-ACA-000 | COVER ASSY SEAT | 1 | |
| 8 | 99660-ACA-000 | COMMUTER BODY COVER | 1 | |
| 9 | 99811-ACA-000 | XMR TAIL BAG | 1 |
