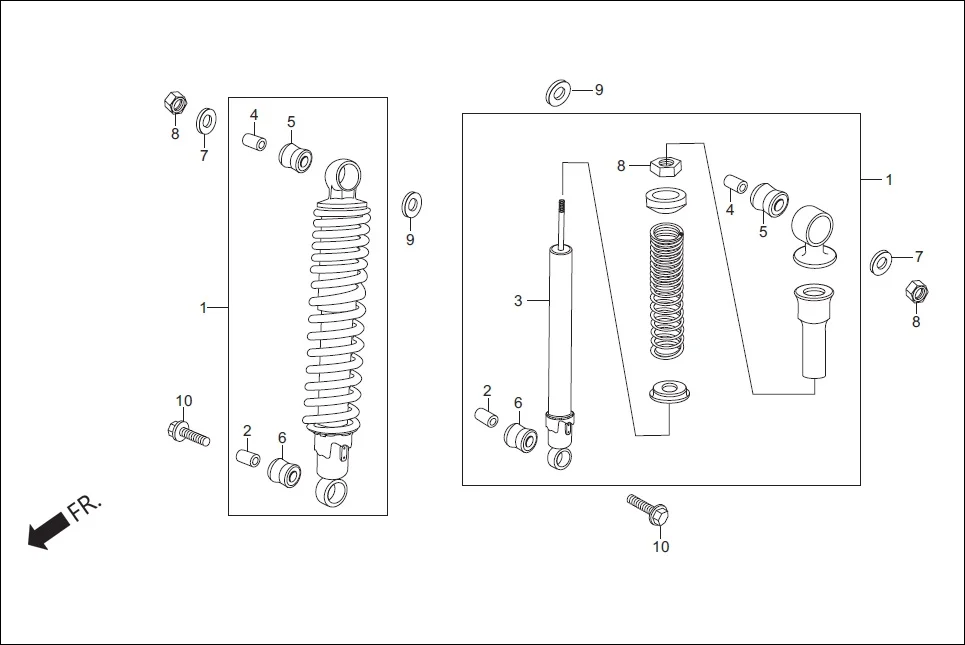

F-20 - CUSHION REAR
Hero Ignitor (NOV, 2014) · 10 parts
Parts in This Assembly (10)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52400-KWF-961 | CUSHION ASSY.REAR | 2 | |
| 2 | 52486-KTN-701 | COLLAR, RUBBER BUSH (UPPER) | 2 | |
| 3 | 52410-KWF-901 | DAMPER COMP., REAR | 2 | |
| 4 | 52486-KAG-901 | COLLAR RUBBER BUSH | 2 | |
| 5 | 52489-399-601 | BUSH, RUBBER (UPPER) | 2 | |
| 6 | 52495-098-000 | BUSH, RUBBER (UNDER) | 2 | |
| 7 | 90551-KTE-910 | WASHER SPECIAL, 10 MM | 2 | |
| 8 | 94021-10000-0S | NUT, HEX., CAP, 10MM | 2 | |
| 9 | 94101-12000 | WASHER, PLAIN, 12MM | 2 | |
| 10 | 95801-10035-00 | BOLT, FLANGE, 10X35 | 2 | |
