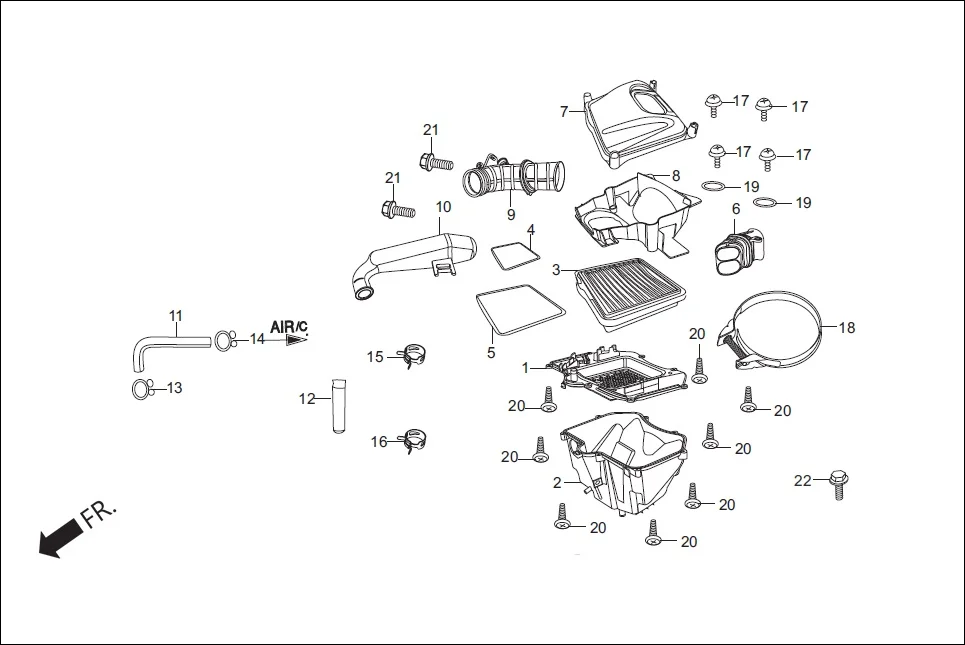

F-15 - AIR CLEANER
Hero Ignitor (NOV, 2014) · 22 parts
Parts in This Assembly (22)
| Ref # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17208-KTE-910 | HOLDER COMP ELEMENT | 1 | |
| 2 | 17210-KWF-900 | CASE COMP AIR C | 1 | |
| 3 | 17211-KWF-950 | ELEMENT COMP.AIR/C | 1 | |
| 4 | 17214-KTE-910 | SEAL B AIR/C | 1 | |
| 5 | 17215-KSP-900 | SEAL A AIR/C | 1 | |
| 6 | 17219-KTE-910 | DUCT AIR C | 1 | |
| 7 | 17220-KTE-910 | COVER AIR C CASE | 1 | |
| 8 | 17234-KWF-900 | COVER AIR / C DUCT | 1 | |
| 9 | 17253-KWF-900 | TUBE AIR C CONN | 1 | |
| 10 | 17311-KTE-911 | RESONATOR | 1 | |
| 11 | 17371-KTE-910 | TUBE BREATHER | 1 | |
| 12 | 17683-KWF-900 | TUBE DRAIN | 1 | |
| 13 | 90651-MK3-780 | CLIP, B 12.5 TUBE | 1 | |
| 14 | 90651-KM9-000 | CLIP B14 TUBE | 1 | |
| 15 | 91406-KFN-850 | CLAMP, D14.5 TUBE | 1 | |
| 16 | 19509-KFN-850 | CLAMP, D16 TUBE | 1 | |
| 17 | 93893-05016-00 | SCREW WASHER 5X16 | 4 | |
| 18 | 95018-54251 | BAND, 54 AIR/C. CONN. TUBE | 1 | |
| 19 | 90450-ZA0-000 | WASHER, PLAIN, 6 X 1.2 | 2 | |
| 20 | 93903-25380 | SCREW TAPPING 5X16 | 8 | |
| 21 | 96001-06025-00 | BOLT, FLANGE, SH. 6 X 25 | 2 | |
| 22 | 95701-06010-00 | BOLT, FLANGE, 6 X 10 | 1 | |
